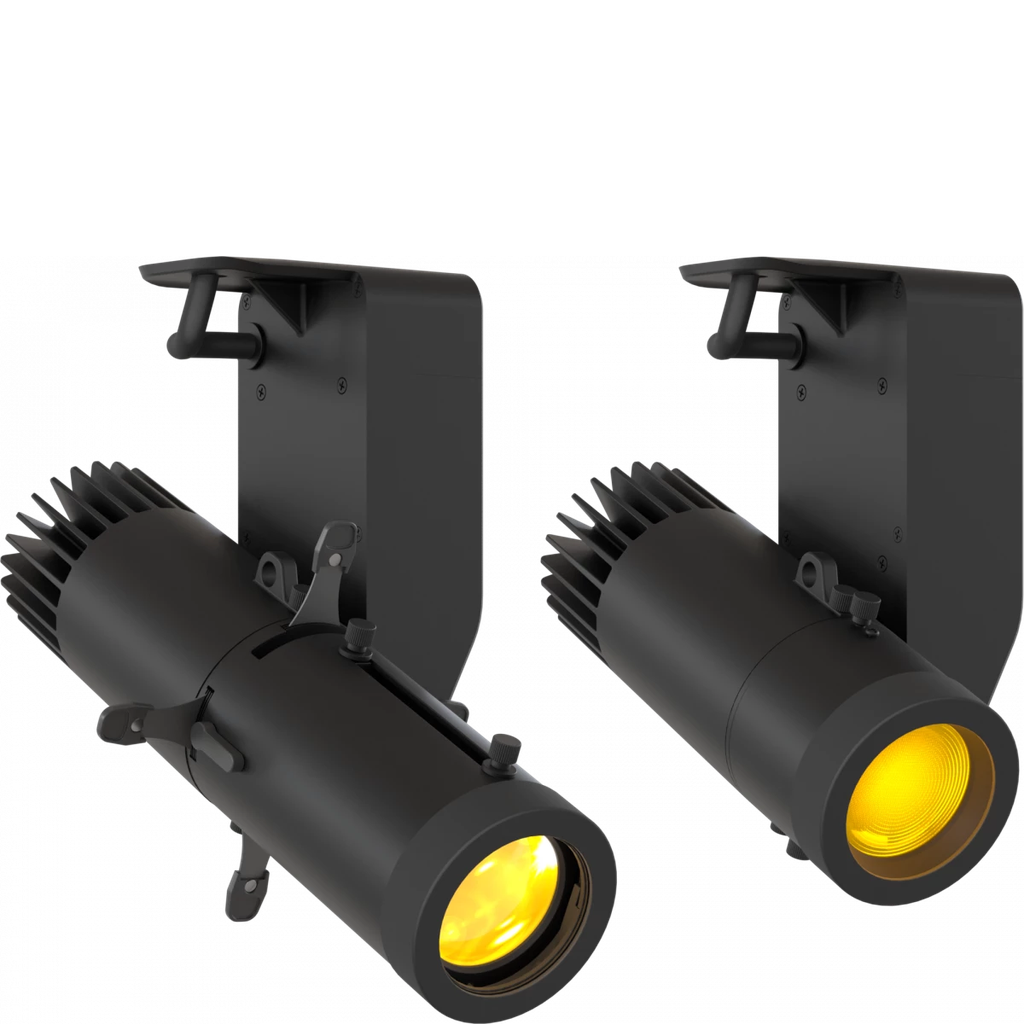

Prolights ECLDISPLAYCRMXFCB

40W RGB+WW LED Spotlight with Wireless CRMX and wired control, w/o lens, black

QUOTE ONLY

Price on request

Add to wishlist

View on Manufacturer Website

SKU: ECLDISPLAYCRMXFCB

CATEGORY: Gallery Lights

BRAND: Prolights

WARRANTY 2 years

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

The EclDisplay CRMX series presents an innovative and versatile range of LED spotlights, designed for use in galleries, commercial spaces, and other public venues. These advanced fixtures are distinguished by their refined design and multiple control options, including both wired and wireless protocols. They are adaptable to a variety of applications, thanks to the availability of different sources and optics.

Each EclDisplay CRMX unit can be programmed and controlled via RDM, encompassing a comprehensive array of built-in input control protocols such as Wireless CRMX, DMX and local knob dimming.

At the heart of the EclDisplay CRMX is a highly efficient 40 W RGB+WarmWhite, LED source, capable of delivering both a Full Colour spectrum and also tuneable White. The fixture's versatility is further enhanced by an extensive range of optional accessories, including profile (zoom and static) or wash lenses and additional optical elements like louvres and snoots. This makes the EclDisplay CRMX not just a lighting fixture, but a comprehensive lighting solution adaptable to a multitude of environments and needs.

Data control through wireless CRMX, RDM, DMX and local knob dimming

40W RGB+WarmWhite LED

Multiple lens options: Profile (zoom and static) or wash optics

Each EclDisplay CRMX unit can be programmed and controlled via RDM, encompassing a comprehensive array of built-in input control protocols such as Wireless CRMX, DMX and local knob dimming.

Features:
Data control through wireless CRMX, RDM, DMX and local knob dimming
40W RGB+WarmWhite LED
Multiple lens options: Profile (zoom and static) or wash optics

LIGHT SOURCE

Source:

40
W

RGB + Warm White LED
Luminous flux:

(profile 2040 - min) 388 lm - (profile 2040 - max) 344 lm; (wash 2550 - min) 357 lm - (wash 2550 - max) 466 lm; (wash 1530 - min) 363 lm - (wash 1530 - max) 402

@Full
Lux:

(profile 2040 - min) 194 lx - (profile 2040 max) 44 lx; (wash 2550 - min) 57 lx - (wash 2550 - max) 23 lx; (wash 1530 - min) 143 lx - (wash 1530 - max) 68
lx

@5 m full
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range:

(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8
°
Other:

360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
Other:

(profile lens) shutter blades lockable
Other:

(profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm

COLOUR SYSTEM

Colour mixing:

RGB + Warm White
CCT:

CCT control through dedicated DMX channel
Colour wheel:

virtual colour wheel with macros

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer and color control
Static mode:

selection of static colour
Manual mode:

manual adjustment of colour
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

Local Knob, DMX, RDM, CRMX
DMX channels:

5 / 6 / 15
ch
RDM:

for remote addressing and parameter configuration
Display:

user interface through DATAMASTER external coder (not included)
Stand Alone:

1

push encoder

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

CONNECTIONS

Power connection:

screw terminal blocks
Wireless Connection:

integrated LumenRadio TiMo RX RDM - CRMX and W-DMX compatible
Data connection:

screw terminal blocks

ELECTRICAL
