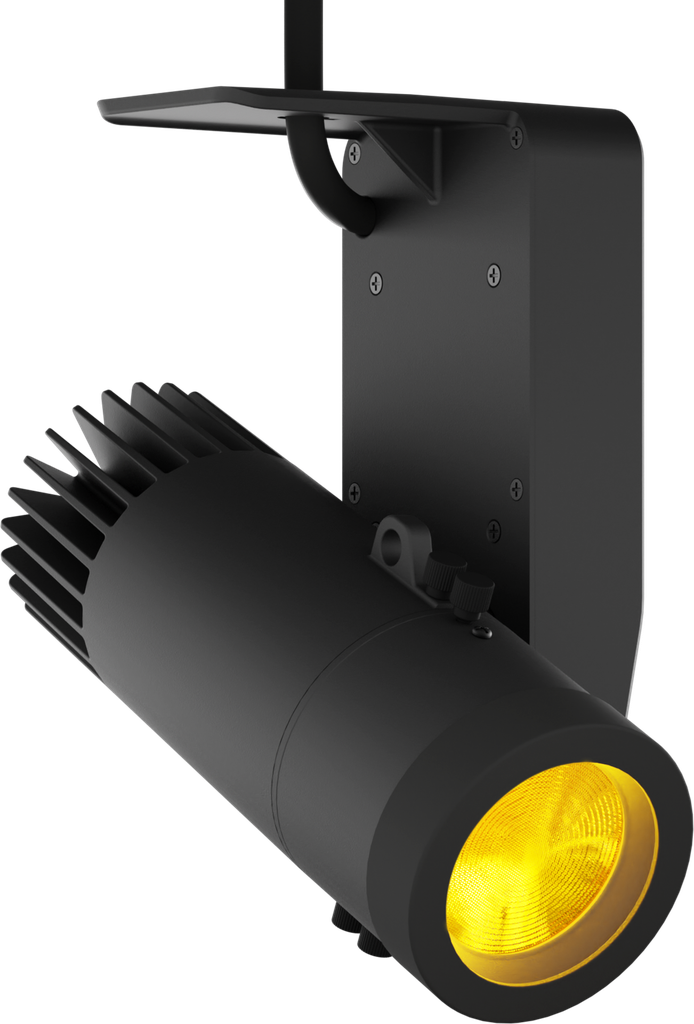

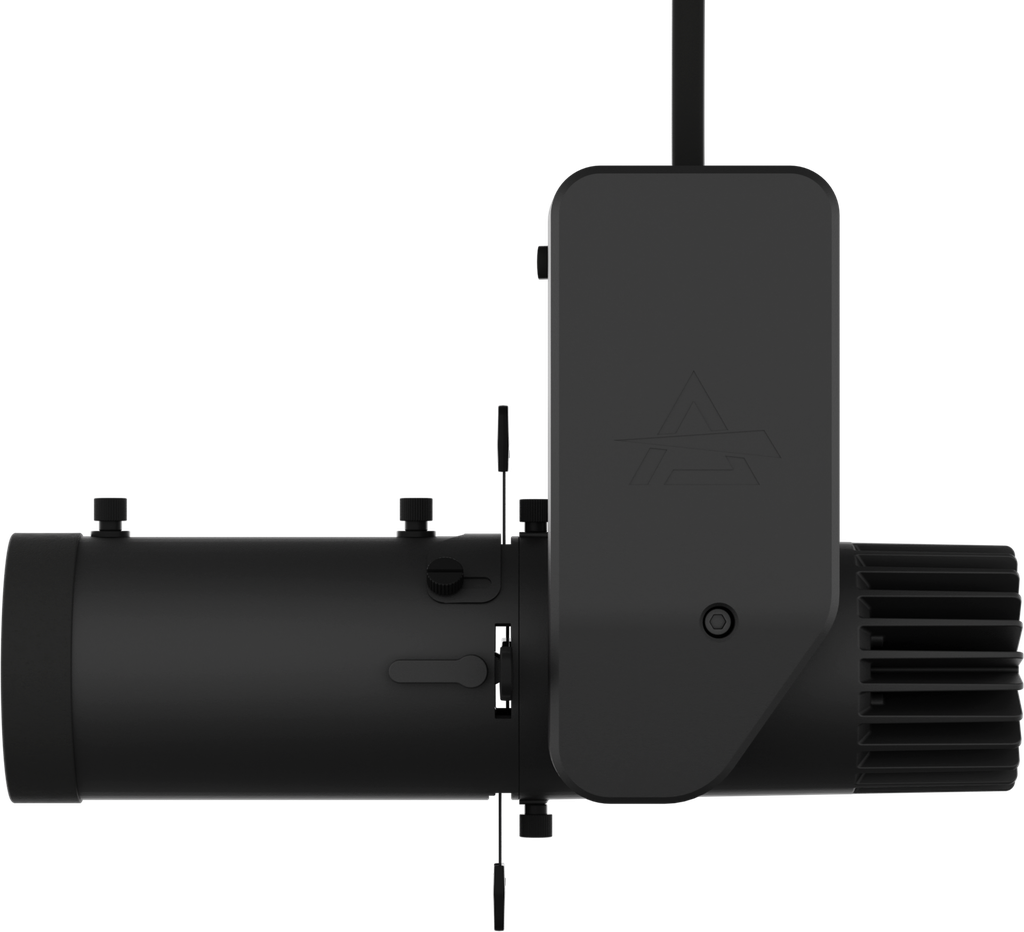

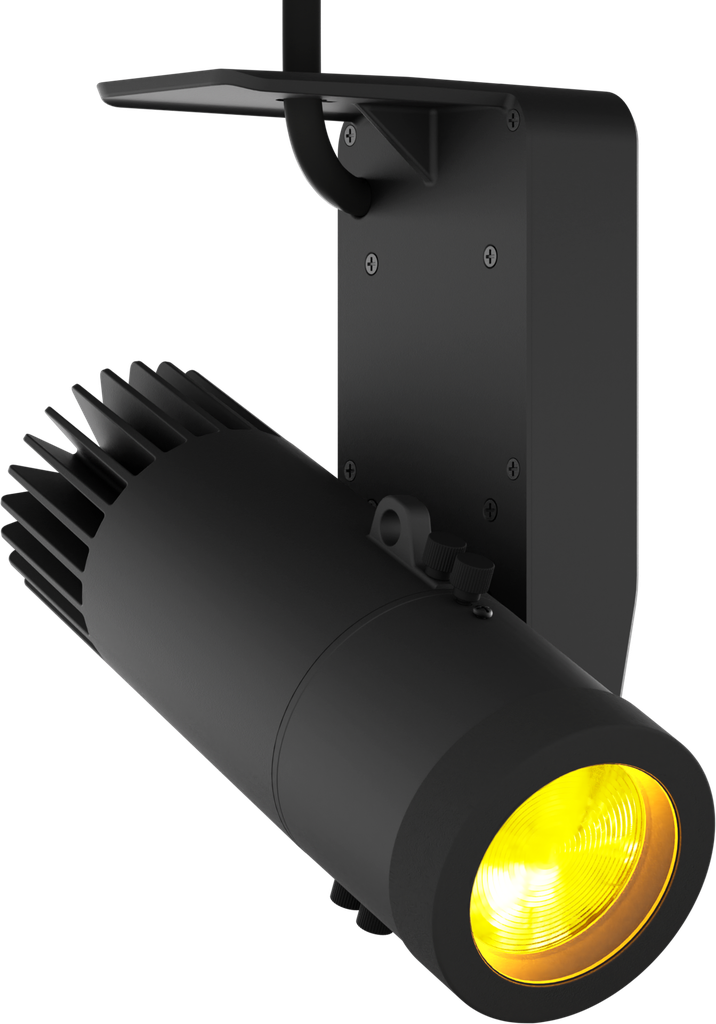

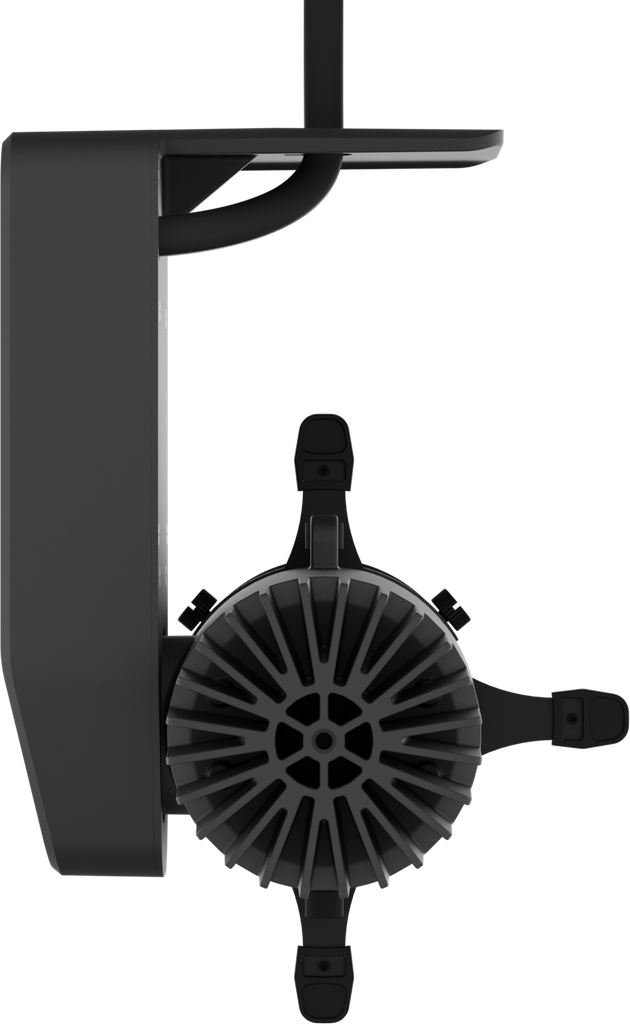

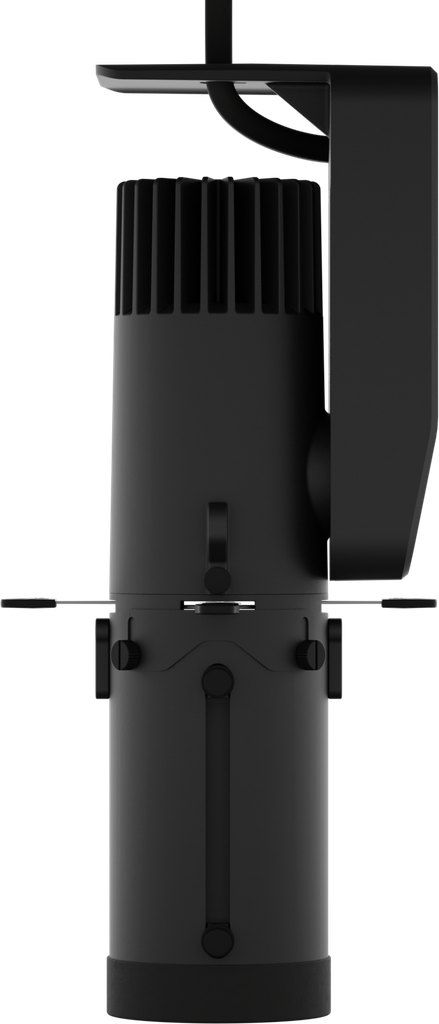

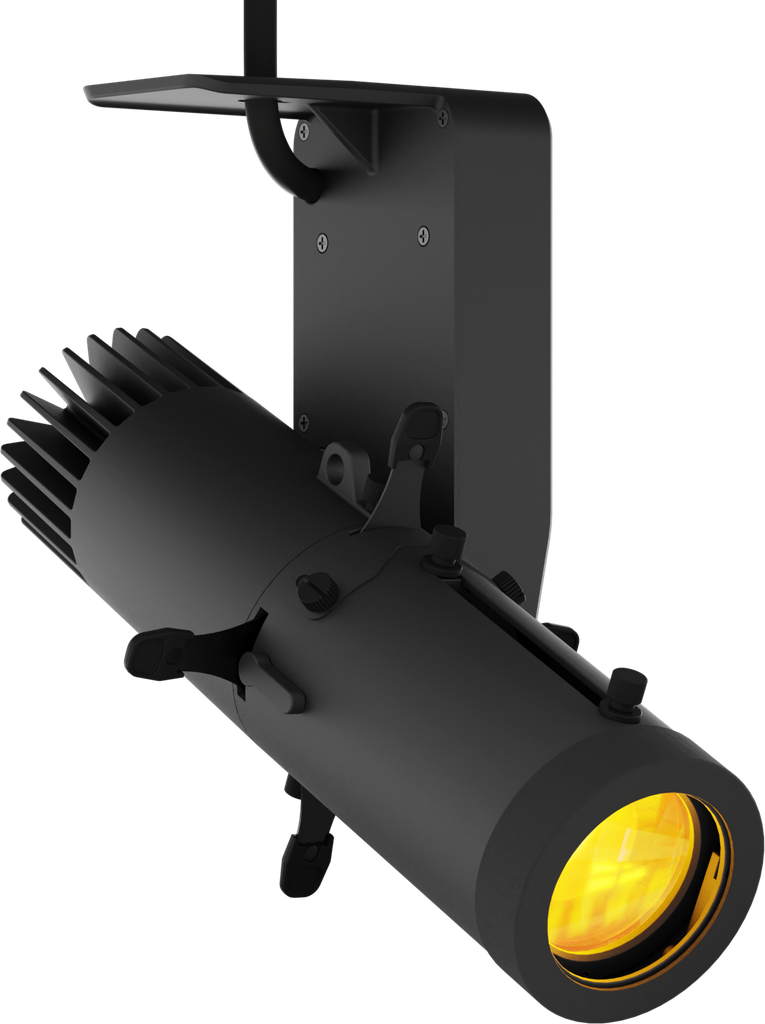

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay CCFC is the version of the EclDisplay range made to be connected to an external Constant Current PSU and driver (max 4 x 1.4A/4.5V), selecting among the PROLIGHTS accessories or any third-party compatible component, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. EclDisplay CCFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tuneable White, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.

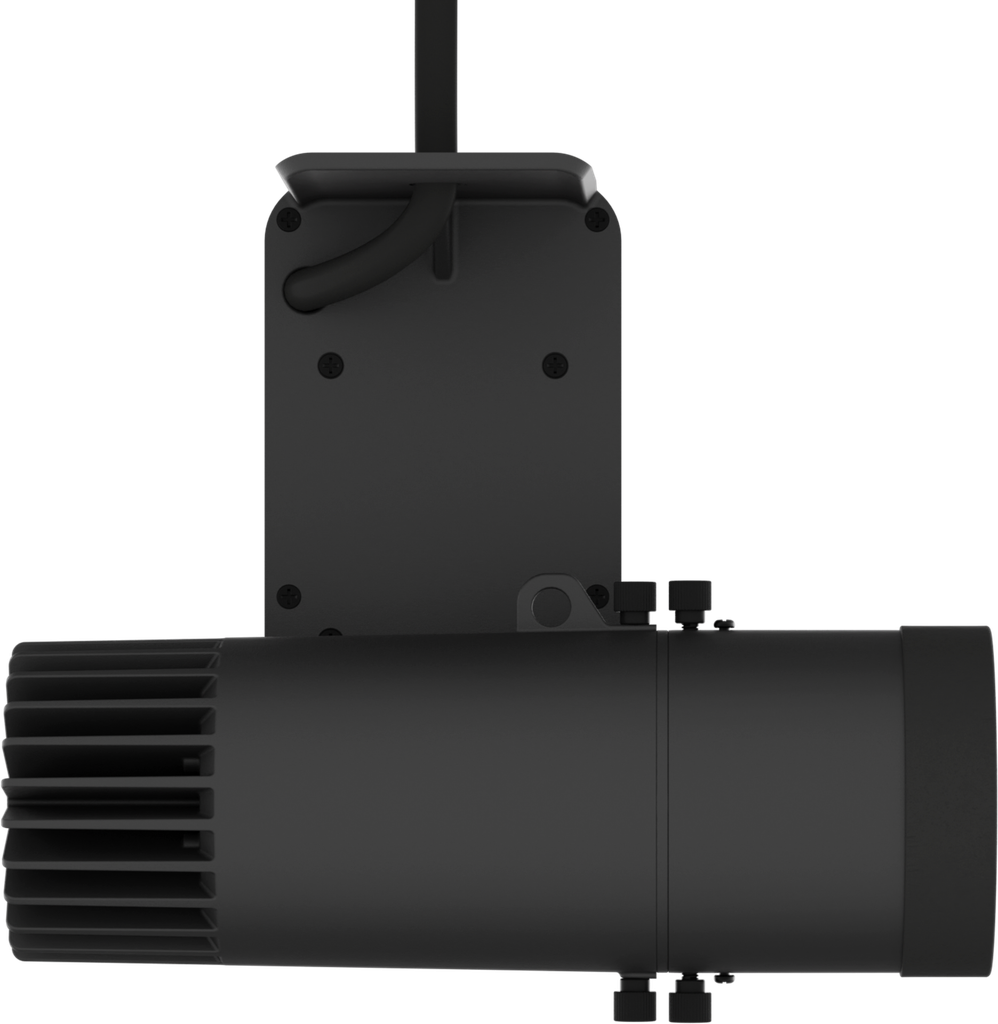

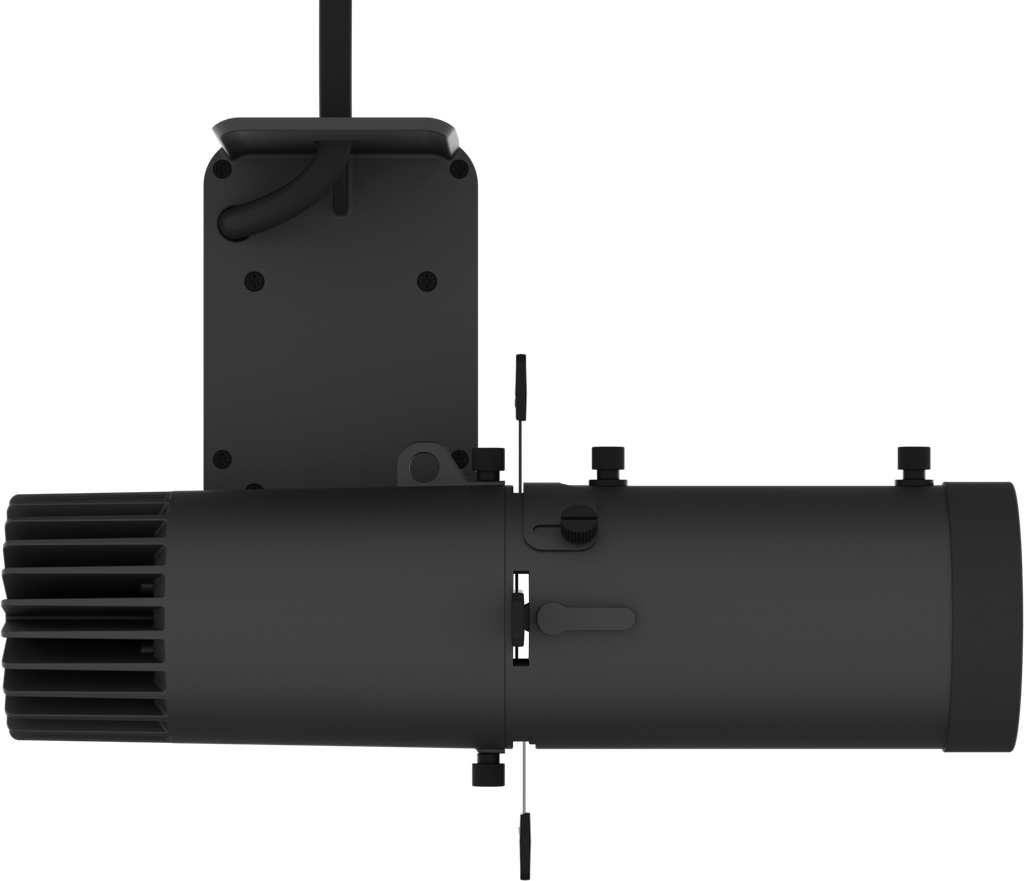

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay CCFC is the version of the EclDisplay range made to be connected to an external Constant Current PSU and driver (max 4 x 1.4A/4.5V), selecting among the PROLIGHTS accessories or any third-party compatible component, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. EclDisplay CCFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tuneable White, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.
Features:Constant Current version to be connected to external PSU and driver (max 4 x 1.4A/4.5V)
40W RGB + Warm White LED capable to deliver both a Full Colour generation and also Tunable White

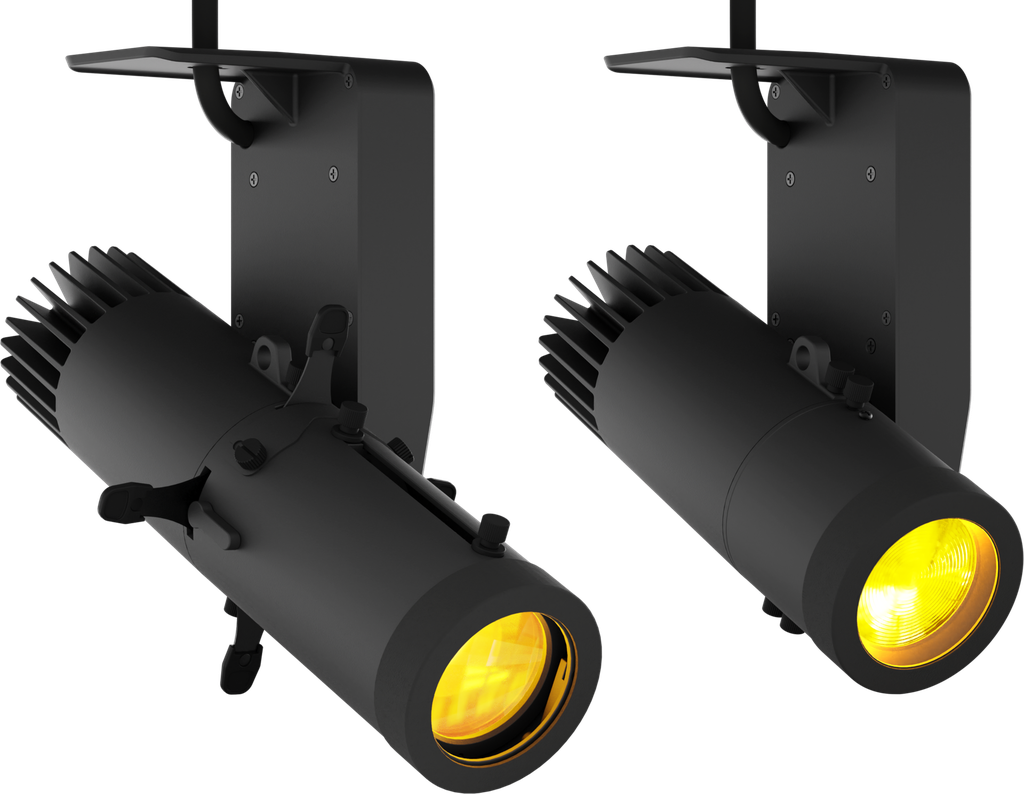

Multiple lens options: profile (zoom and static) or wash optics
- Source:40WRGB + Warm White LED
- Luminous flux:(profile 2040 - min) 388 lm - (profile 2040 - max) 344 lm; (wash 2550 - min) 357 lm - (wash 2550 - max) 466 lm; (wash 1530 - min) 363 lm - (wash 1530 - max) 402@Full
- Lux:(profile 2040 - min) 194 lx - (profile 2040 max) 44 lx; (wash 2550 - min) 57 lx - (wash 2550 - max) 23 lx; (wash 1530 - min) 143 lx - (wash 1530 - max) 68lx@5 m full
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Zoom range:(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°
- Other:360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
- Other:(profile lens) shutter blades lockable
- Other:(profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
- Colour mixing:RGB + Warm White
- Data:screw terminal blocks
- Constant Current mains:max 4 x 1.4A/4.5V
- Max power consumption (230V):30W
- Output (at 230V):40units on a single power line
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Die-cast aluminium

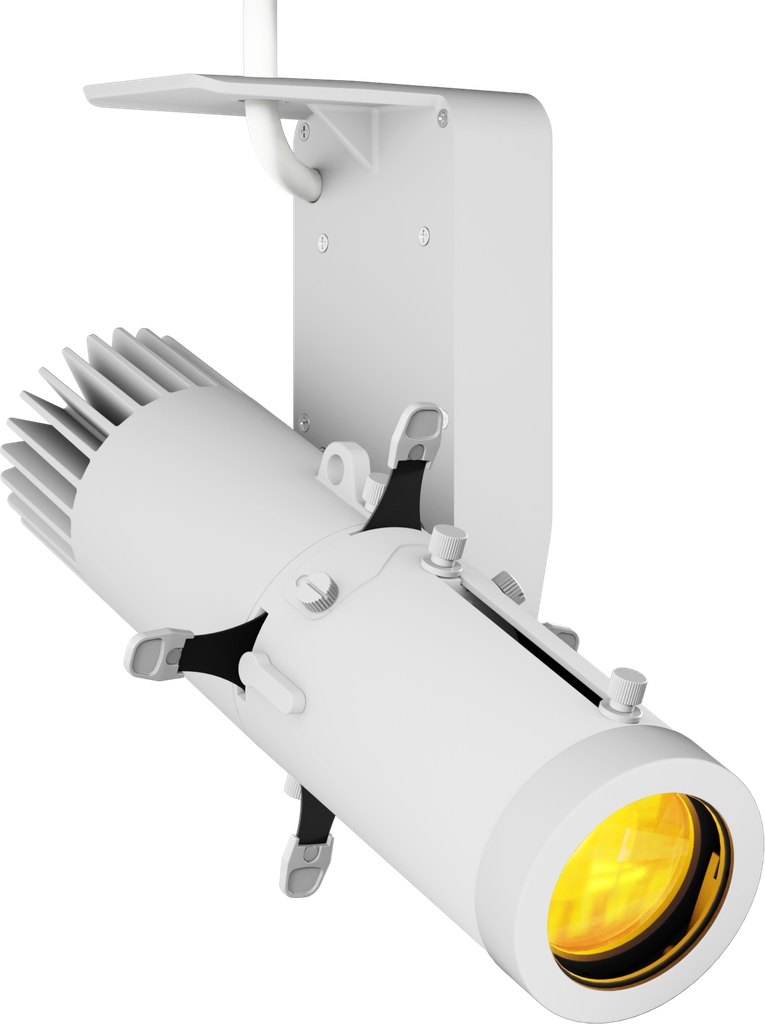

- Finish:black (RAL 9004) or white (RAL 9010)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):124X200x150mm
- Weight:1,15kg
- Suspension and fixing:hanging / ceiling installation
- Hardware on-board:lockable tilt with screw
- Other:1m cable included - Cable diameter range: 6 - 10 mm
- Compliance:CE, UKCA, RCM, cTUVus, FCC
