Prolights DIGISTRIPIP50

Pixel-map LED bar, 50x0.25W LED RGB/FC, ArtNet 150ch, IP65,

QUOTE ONLY

Price on request

SKU: DIGISTRIPIP50
CATEGORY: Pixel Mapping
BRAND: Prolights
WARRANTY 2 years
EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONTACT US

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

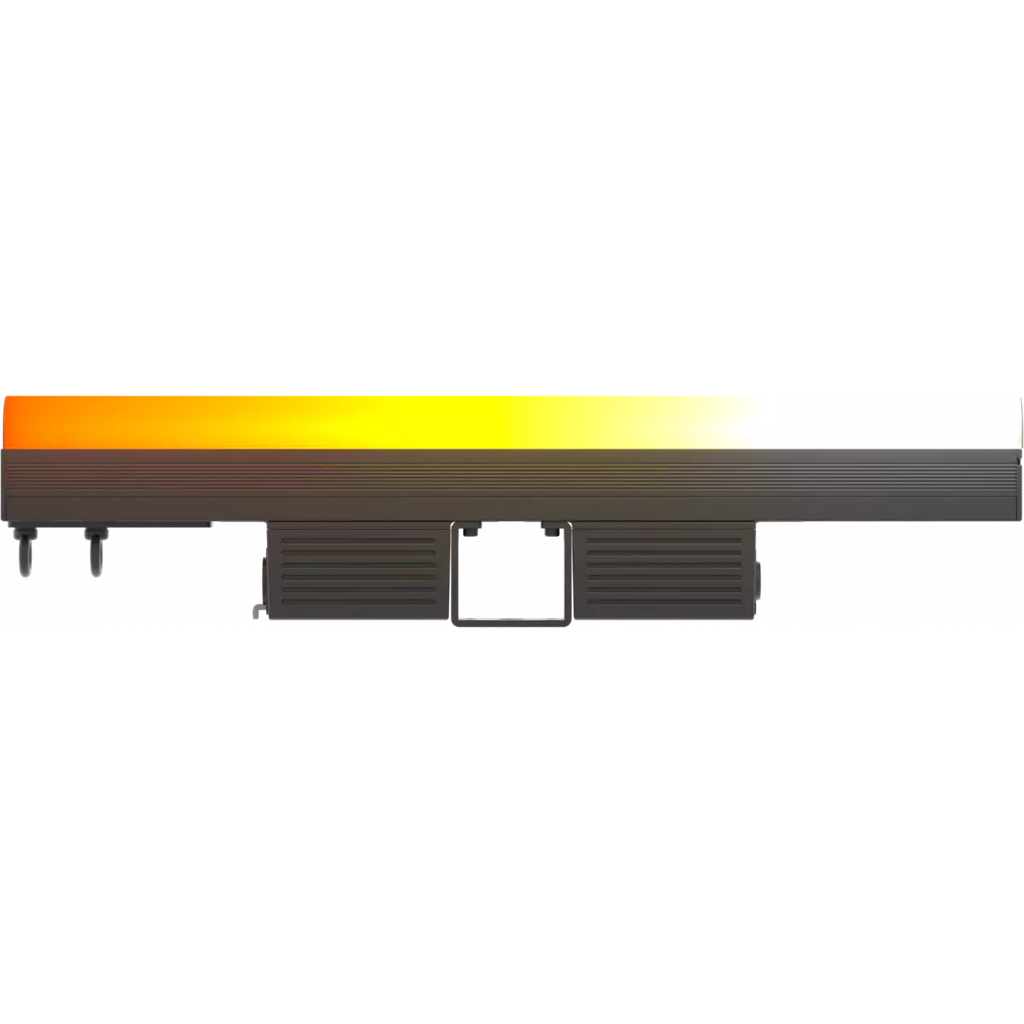

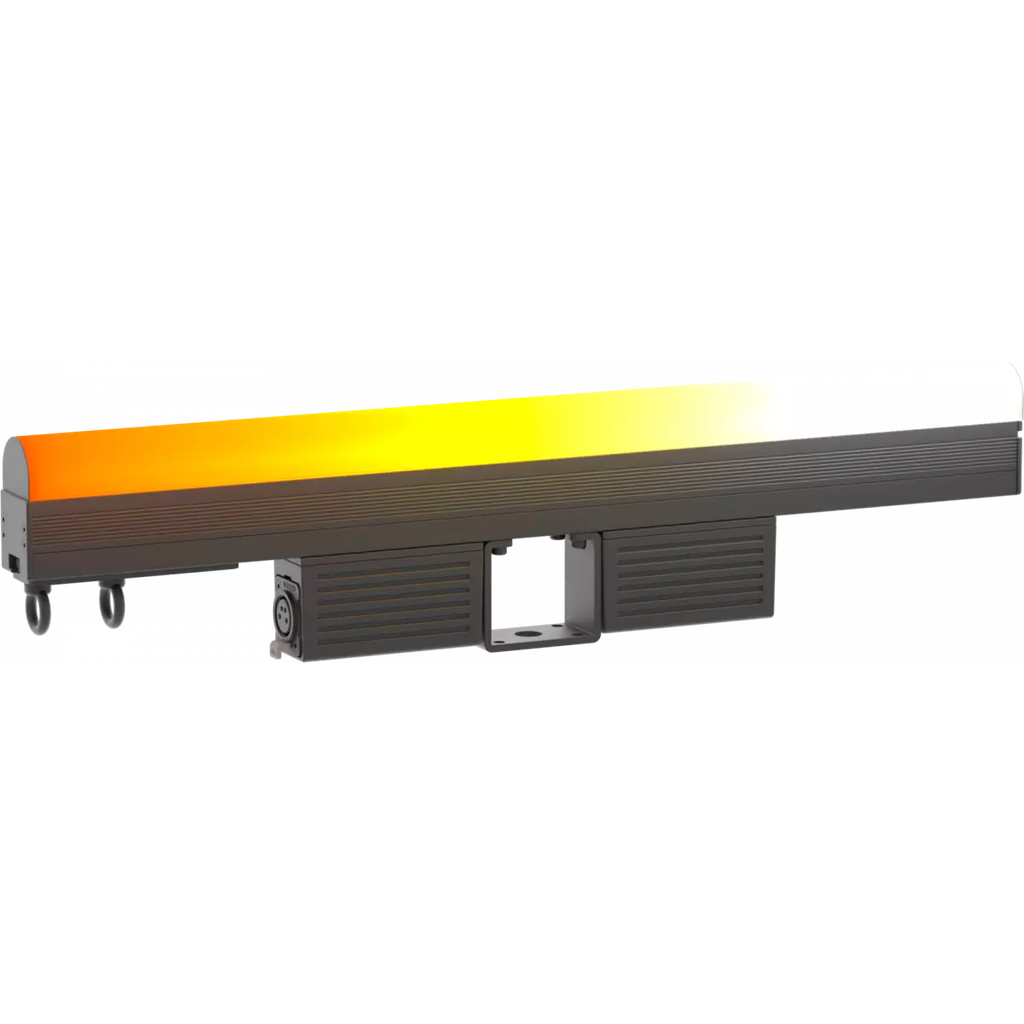

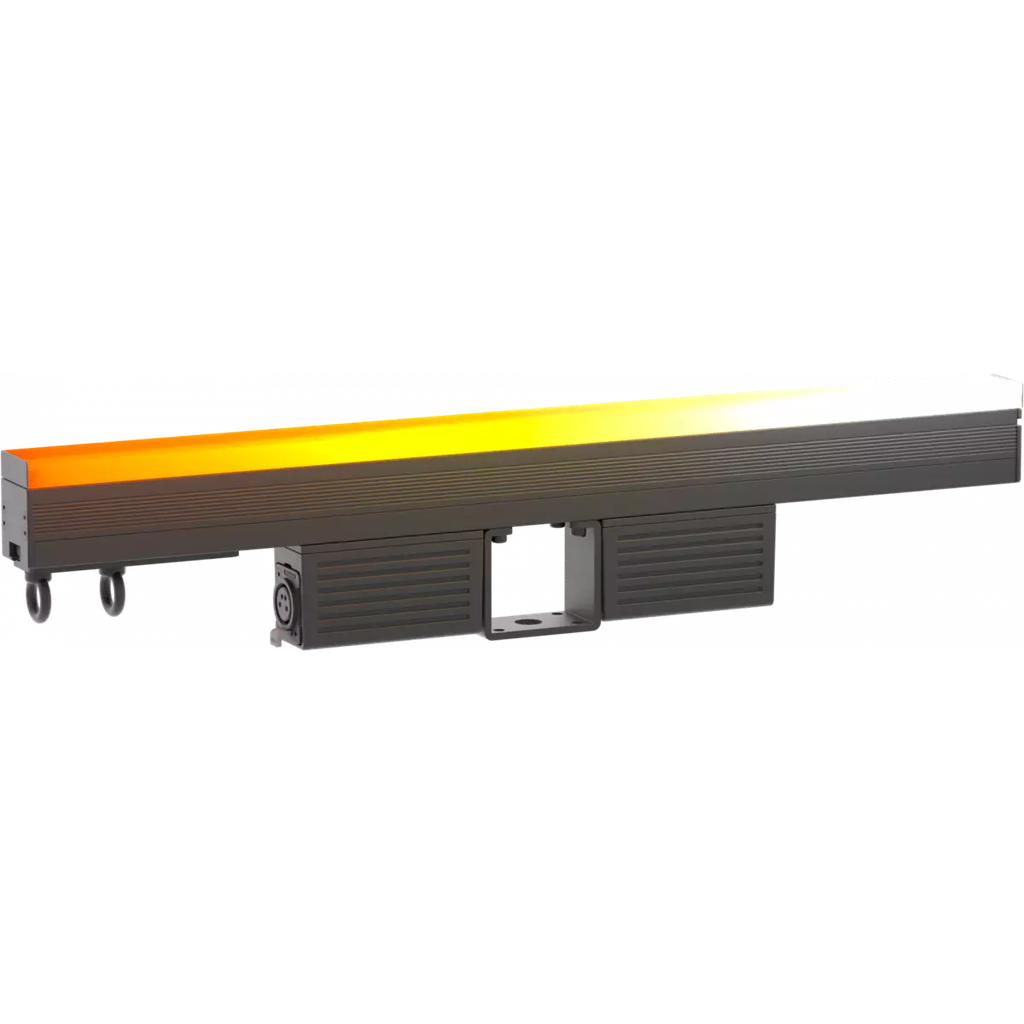

DigiStrip IP50 is a linear LED 10 mm pixel pitch video fixture for the rental market with an extensive range of optical accessories for a wide variety of looks (black and white included, transparent on demand). Each 50 cm long strip features 50 RGB / FC LEDs with individual pixel control and a 100° viewing angle. The mechanics of DigiStrip IP50 have been studied to grant greater mounting flexibility by adding sliding hardware on the back for truss application and on the side for multiple vertical linking. The external control unit DigiDriver IP is compatible with Art-Net and Kling-Net protocol and runs both signal and power over a 4 pole cable that provides greater stability and connection in a daisy chain (up to 40 DigiStrip IP50).

  • High-resolution IP65 video pixel batten, featuring 50 LEDs in a row
  • Several optional optical filters delivering a wide range of different looks and finishes
  • Easy setup and wiring though the DigiDriver IP
  • DigiStrip IP50 is a linear LED 10 mm pixel pitch video fixture for the rental market with an extensive range of optical accessories for a wide variety of looks (black and white included, transparent on demand). Each 50 cm long strip features 50 RGB / FC LEDs with individual pixel control and a 100° viewing angle. The mechanics of DigiStrip IP50 have been studied to grant greater mounting flexibility by adding sliding hardware on the back for truss application and on the side for multiple vertical linking. The external control unit DigiDriver IP is compatible with Art-Net and Kling-Net protocol and runs both signal and power over a 4 pole cable that provides greater stability and connection in a daisy chain (up to 40 DigiStrip IP50).

    Features:
    High-resolution IP65 video pixel batten, featuring 50 LEDs in a row
    Several optional optical filters delivering a wide range of different looks and finishes
    Easy setup and wiring though the DigiDriver IP

    LIGHT SOURCE
    • Source:
      50x0,25
      W
      RGB LEDs
    • Luminous flux:
      without cover: 341 lm - black cover: 45 lm - flat white cover: 173 lm - dome white cover: 220
      @Full
    • Lux:
      without cover: 5 lx - black cover: 1 lx - flat white cover: 2 lx - dome white cover: 1
      lx
      @5 m full
    • Other:
      view angle 100° - driver chip MBI 5043
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Pixel pitch:
      10
      mm
    • Additional optics:
      black cover and white dome cover (included)
    • Other:
      flat white cover (included)
    COLOUR SYSTEM
    • Colour mixing:
      RGB / FC
    CONTROL
    • Supported Protocols:
      Art-Net, sACN, Kling-Net
    • Control units:
      40 pcs power & signal under 1 pc DIGIDRIVERIP
    • Art-Net channels:
      150
      ch
    • Pixel control:
      pixel2pixel control
    CONNECTIONS
    • Signal connection:

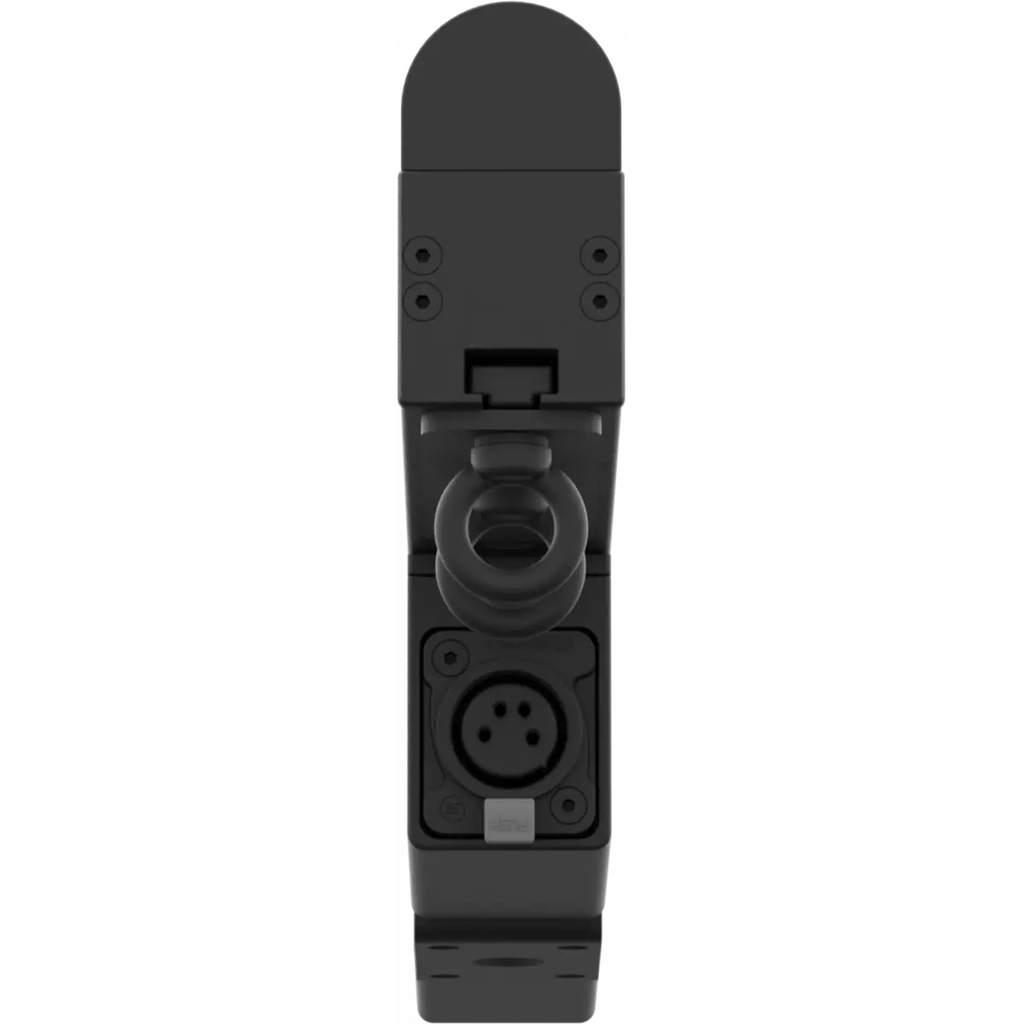

      Seetronic XLR 4p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      DC 48V
    • Max power consumption (230V):
      12,5
      W
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Housing:
      Sturdy aluminium profile
    • Finish:
      black
    • Dimensions (WxHxD):
      500x33x114
      mm
    • Weight:
      1,35
      kg
    INSTALLATION
    • Suspension and fixing:

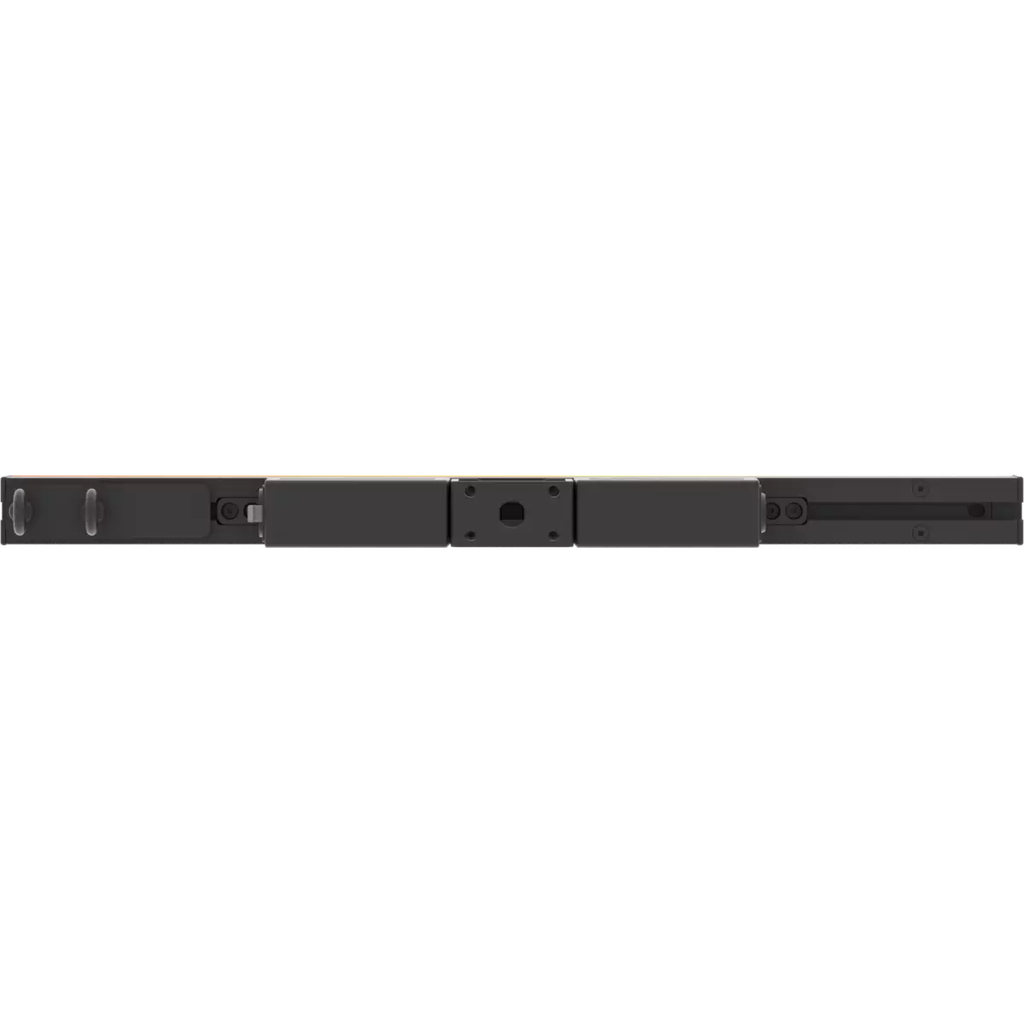

      bracket for truss rigging and hardware for connection of more units
    • Hardware on-board:
      on board mechanics for modular assembly of multiple fixtures
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA
