Super modular, fully compatible with P2 EVO.

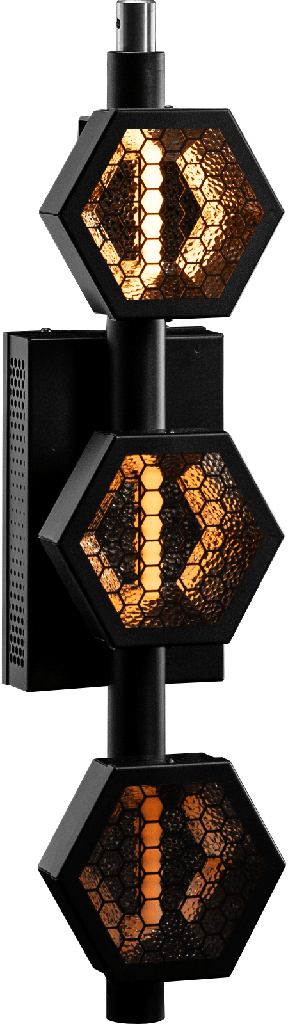

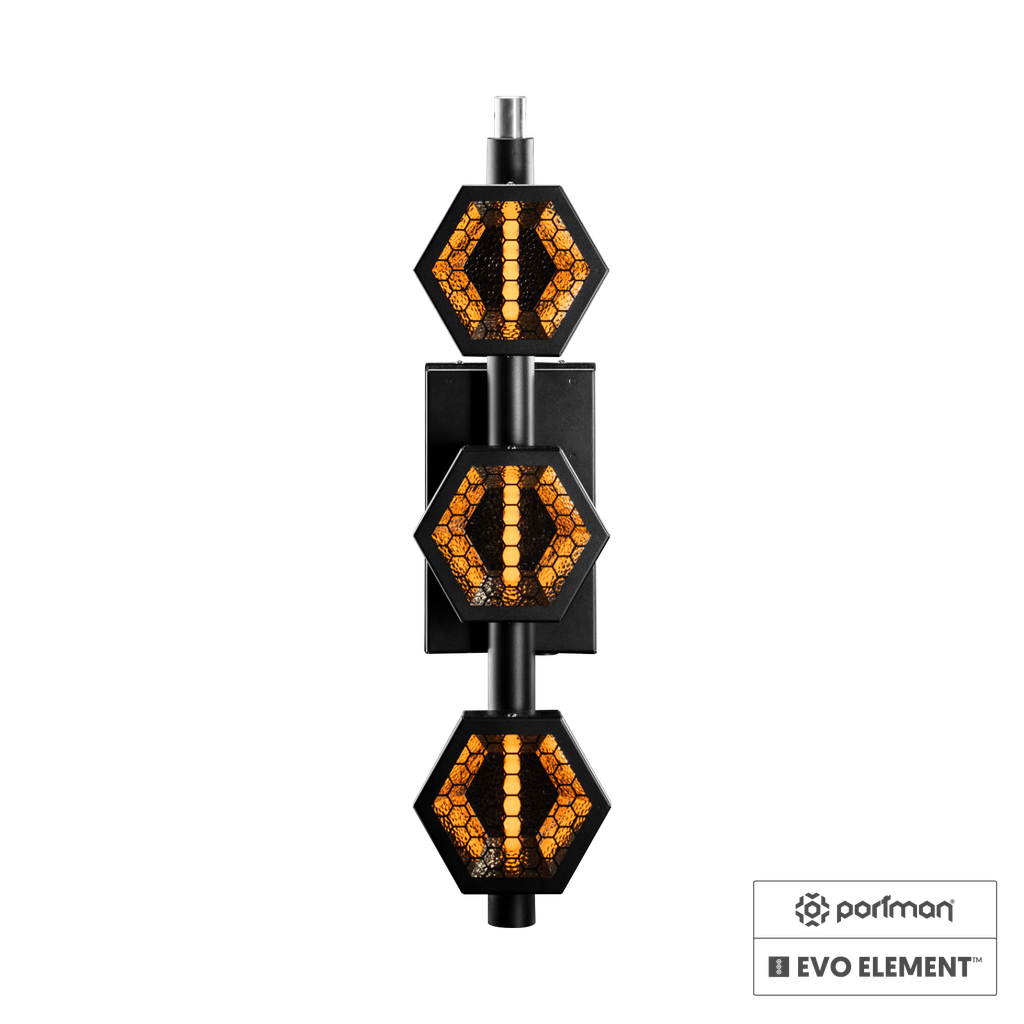

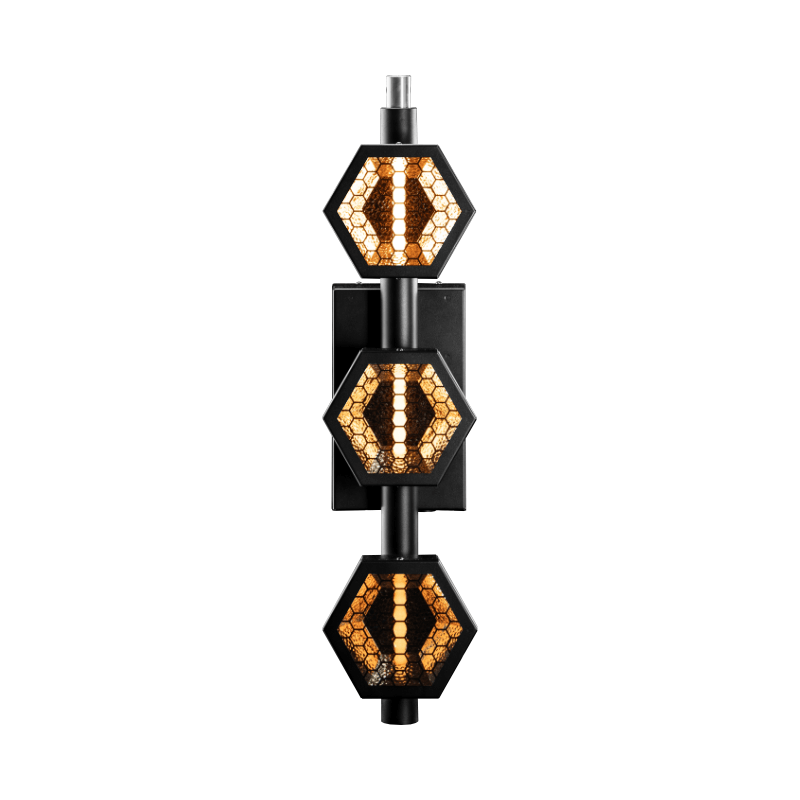

EVO ELEMENT is a super modular stage fixture, fully compatible with P2 EVO, Portman's bestseller: two EVO ELEMENTs make one P2 EVO in height, with the same pixel sizes, light sources and accessories.

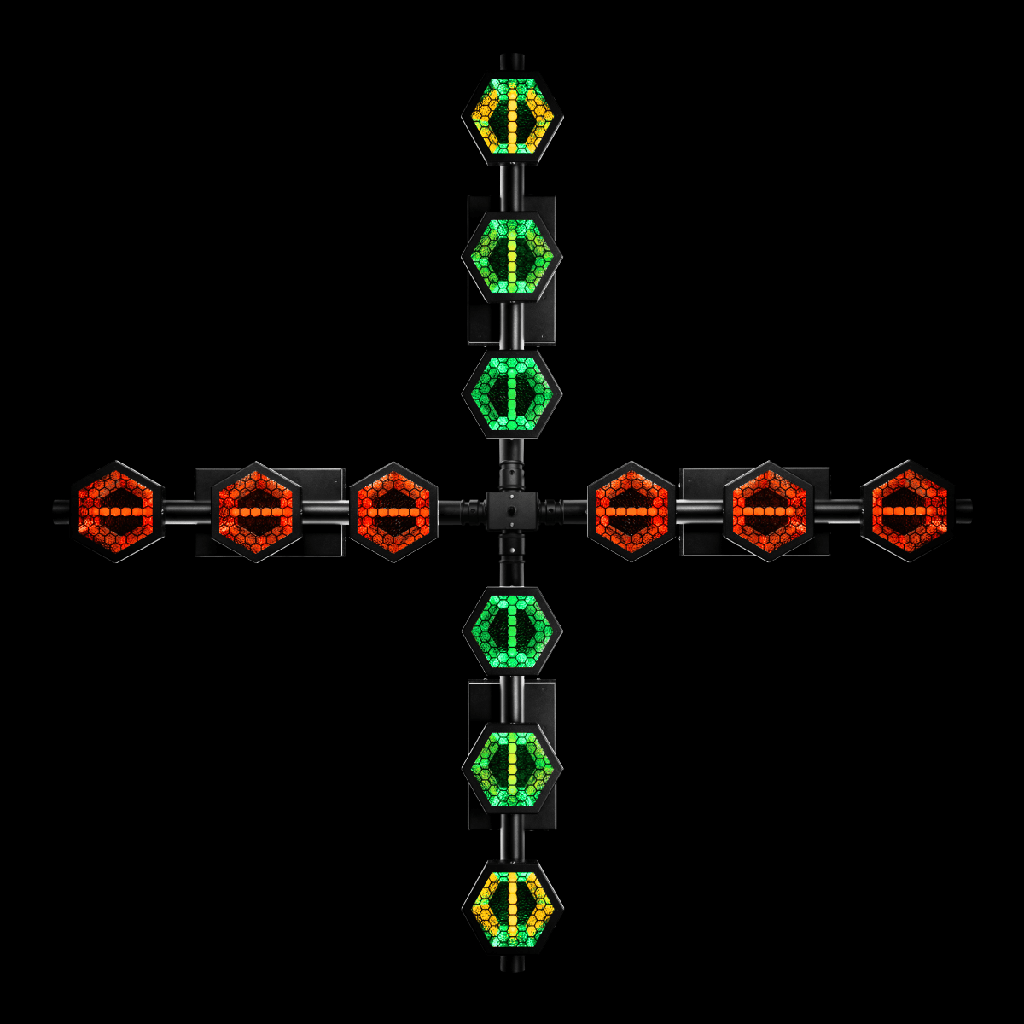

Portman haloLED sources give full halogen emulation and a 16-bit RGBW glow gives smooth colour. With the E-CONN 4-way connector you build triangles, squares, hexagons and any other structure.
Key features
- 3 x 60 W Portman haloLED with true tungsten emulation

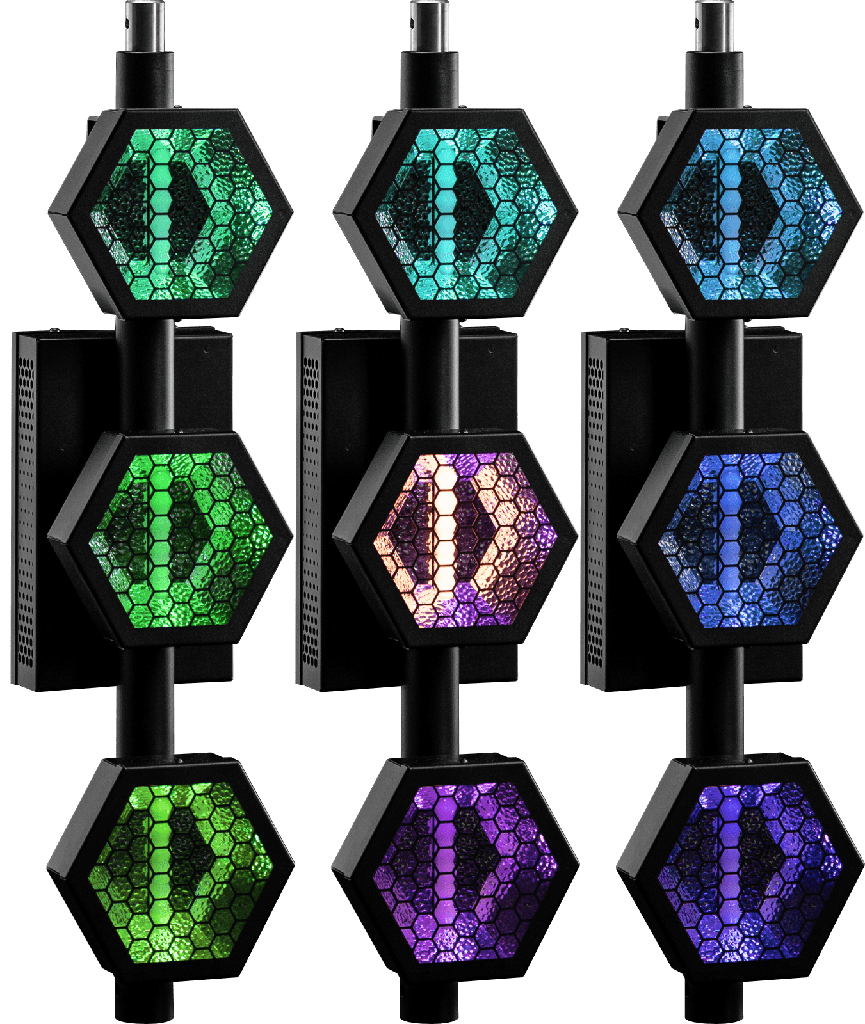

- 3 x 12 W RGBW glow, 16-bit colour mixing
- Same pixels, sources and accessories as P2 EVO
- Connects with P2 EVO and the E-CONN 4-way connector
- 6 DMX modes (9-39 channels), RDM, macros, W-DMX option
- Hanging adaptor included (also for tripod)
Specifications
| Dimensions (H x W x D) | 866 x 205 x 189 mm (34.09 x 8.07 x 7.44 in) |
| Weight | 5.2 kg (11.46 lbs) |
| Light sources | 3 x haloLED (3 x 60 W); 3 x RGBW glow (3 x 12 W) |
| Colour temperature | 1600-3200 K white; RGBW glow |
| CRI | >90 |
| Optics | High-reflective hammered reflector, opal diffuser |
| Power consumption | max 240 W |
| Input voltage | 100-240 V, 50/60 Hz |
| Power connector | PowerCON TRUE1 in / thru |
| Control connector | 5-pin XLR in / out |
| Control features | 6 DMX modes (9-39 DMX channels), RDM, macros, W-DMX (optional module) |
| User interface | High-contrast LCD display, highlighted buttons |
| Rigging | 2 x 12 mm (1/2 in) holes for clamp on back; hanging adaptor (12 mm hole) included; base not included |
| Mounting position | Any |
| IP rating | IP20 (indoor) |
| Warranty | 24 months |
| What's in the box | Fixture, 2 m power cord (PowerCON TRUE1 to no plug), hanging adapter (also for tripod), user manual |
| Optional accessories | E-CONN 4-way connector, P2 EVO base, P2 EVO height adapter, W-DMX module, male-male connector, flight case |
User manual and DMX chart: see Downloads. Fixture libraries and firmware: Portman support portal.
