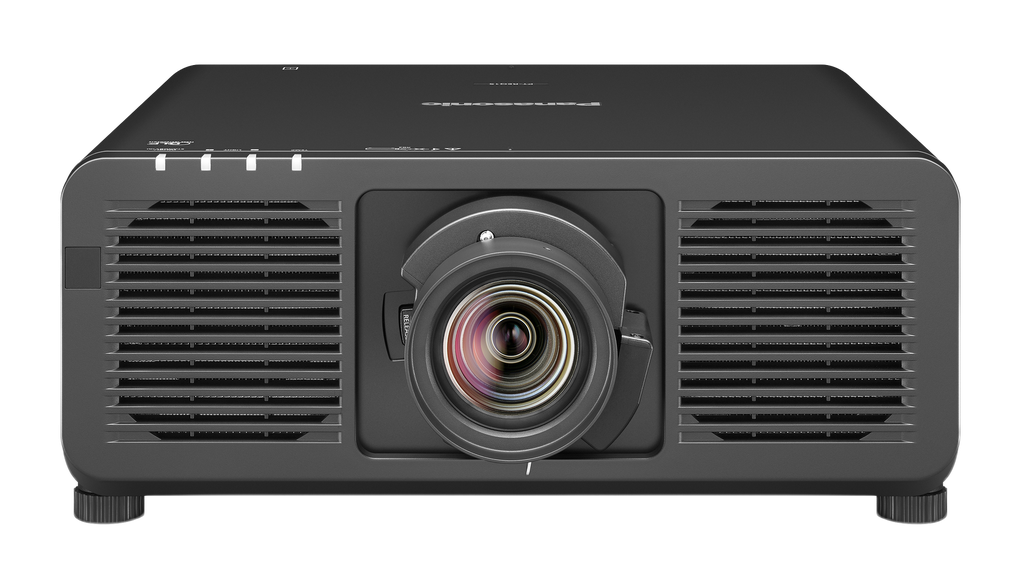

Panasonic PT-REZ15

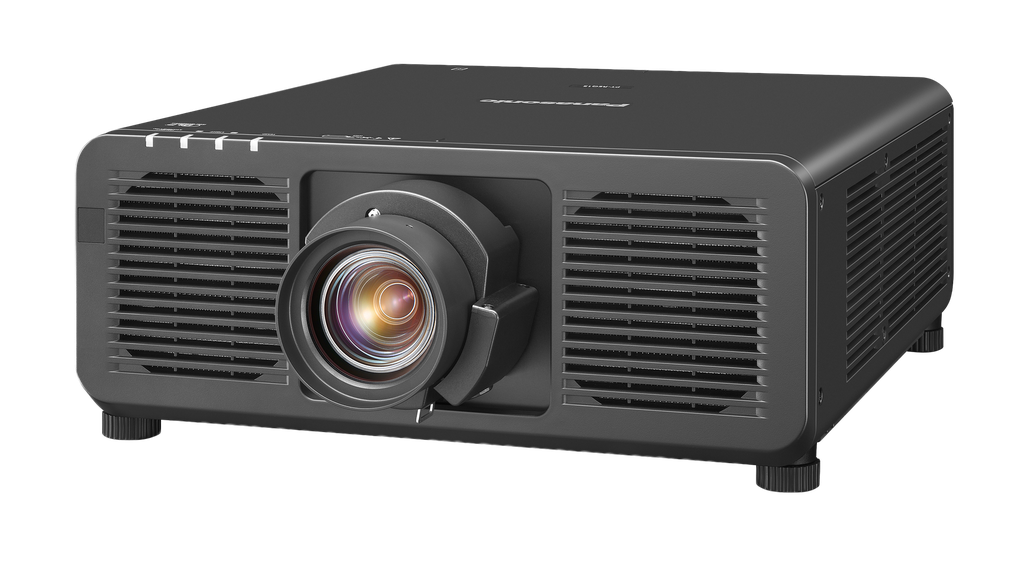

Panasonic's flagship compact 1-Chip DLP laser projector, delivering full 15,000 lm brightness on standard AC 100–240V power. Built for large-scale immersive production, XR attractions, and rental/staging work, it pairs WUXGA imaging with an interchangeable C1 series lens lineup and Intel SDM slot for AVoIP and media processor integration — the WUXGA counterpart to the 4K PT-REQ15.

Key Features:

• 15,000 lm (ANSI) / 15,500 lm (center), WUXGA (1920 x 1200 px)
• Full brightness on standard AC 100–240V power — no high-voltage rewiring needed
• Interchangeable C1 series lens system (throw ratios from 0.308:1) with powered zoom/focus, Lens Memory, and Auto Lens Identification
• Evolved Dynamic Contrast at 25,000:1, plus Gradation Smoother and refined black-level adjustment for seamless curved-screen blending
• REZ15-exclusive Screen Marker function (adjustable Line Frame + crosshair) and updated Web Control UI with dark/light modes
• Backup Input Redundancy — auto-switches to a backup HDMI feed in under 0.3s with no screen blank
• IP5X dust-protected optical engine and liquid cooling for 20,000-hour maintenance-free operation
• Intel SDM standard-compatible slot for AVoIP, SDI, and HDBaseT function boards
• NFC-based setup prep, Smart Projector Control app (control up to 64 projectors), USB Connect Control
• Multi-Laser Drive Engine with failover circuitry, Geo Pro geometric adjustment tools included

Specifications:

• Projector type: 1-Chip DLP
• Panel size: 0.8 in (16:10)
• Light output: 15,000 lm (ANSI) / 15,500 lm (Center)
• Time to 50% brightness: 20,000 hrs (Normal/Quiet), 24,000 hrs (Eco)
• Resolution: WUXGA (1920 x 1200 px)
• Contrast ratio: 25,000:1 (Full On/Off, Dynamic Contrast 3)
• Screen size: 70–700 in (with supplied lens)
• Lens: Optional powered zoom/focus lenses (interchangeable, C1 series only)
• Lens shift: Vertical ±60% (with ET-C1W400/W500/S600/T700/T800) or ±50% (with ET-C1W300/U100), +88% with ET-C1U200; Horizontal ±29% or ±23% depending on lens
• Keystone correction: Vertical/Horizontal ±40° (reduced with certain lenses)
• Terminals: 2x HDMI (HDCP 2.3, 4K/60p), 1x DisplayPort (HDCP 2.3, 4K/60p), Multi Projector Sync In/Out, RS-232C Serial In/Out, Intel SDM slot
• Power supply: AC 100–240V, 50/60Hz
• Maximum power consumption: 1,090 W (1,040 W at AC 200–240V)
• Operation noise: 42 dB (Normal/Eco), 38 dB (Quiet)
• Dimensions (W x H x D): 498 x 212 x 648 mm (with supplied lens); 498 x 212 x 538 mm (REZ15L, without lens)
• Weight: Approx. 28.7 kg (with supplied lens); 27.0 kg (REZ15L, without lens)
• Operating temperature: 0–45°C
• Applicable software: Multi Monitoring & Control Software, Projector Network Setup Software, Early Warning Software, Geometry Manager Pro, Smart Projector Control
