Panasonic PT-LMZ420

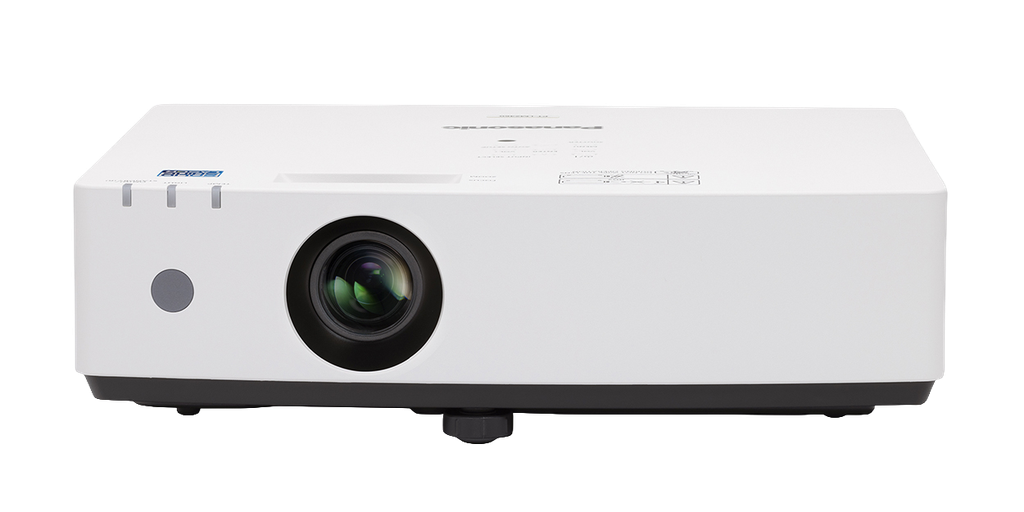

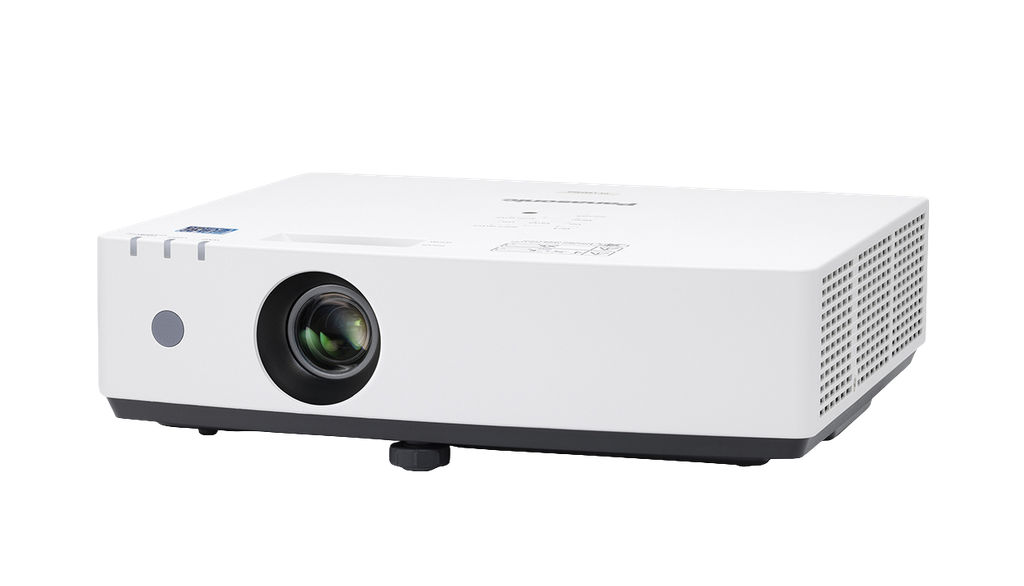

PT-LMZ420 — 3LCD Laser Projector, WUXGA, 4,200 lm

The step-down from the LMZ460: same 4.2 kg laptop-sized body, same WUXGA panel, same optics, 400 lm less output — and, usefully, a couple of decibels quieter at 33 dB normal and 23 dB in Quiet. For smaller meeting rooms and classrooms where 4,200 lm is plenty, that quieter running is arguably worth more than the extra brightness. Like the rest of the series it uses the same mount and bracket as the lamp-based PT-LB426, so replacing an ageing lamp projector is a straight swap with no construction work, and Digital Zoom Extender covers the case where the existing mount sits further from the screen than the optical zoom reaches. No lens shift on this class, so mounting geometry needs planning up front.

Key Features:

• 4,200 lm (ANSI) WUXGA with 3,000,000:1 dynamic contrast
• 4.2 kg with a laptop-sized footprint — portable, easy to ceiling mount solo
• 23 dB in Quiet mode, 33 dB in Normal — quieter than the LMZ460
• Uses the same mount and bracket as the lamp-based PT-LB426 Series for drop-in upgrades
• 20,000 h to 50% output (24,000 h ECO) with washable ECO Filter, no lamp changes
• 1.2x zoom (1.36–1.64:1) plus Digital Zoom Extender to 2.05:1 for reusing distant mounts
• Digital Image Shift moves the image 10% in any direction, for mounts blocked by light fittings or vents
• Auto vertical keystone ±25°, manual horizontal ±35°
• Free 360-degree installation, ceiling or floor, front or rear
• 4K/30p signal input over both HDMI™ inputs with CEC support
• QR-code wireless pairing (optional AJ-WM50 module) and PressIT compatibility
• Memory Viewer plays media direct from USB
• PJLink™ Class 2, Crestron Connected™ and AMX Device Discovery over LAN

Lens: Fixed 1.2x manual zoom, built in (no optional lens options, and no lens shift on this model).

Specifications:

• Projector type: 3LCD (transparent LCD panel x 3, R/G/B)
• Light output: 4,200 lm (ANSI)
• Resolution: WUXGA (1920 x 1200 px)
• Contrast ratio: 3,000,000:1
• Screen size: 0.76–7.62 m (30–300 in), 16:10
• Lens: 1.2x manual zoom, 1.36–1.64:1, F 1.61–1.76
• Lens shift: none
• Keystone: V ±25° (auto/manual), H ±35° (manual)
• Terminals: HDMI™ x 2, D-sub 15-pin in and out, LAN, USB Type A, RS-232C, audio in x 2 / out x 1 (no DIGITAL LINK)
• Speaker: 10 W monaural
• Power: AC 100–240 V, max. 240 W
• Noise: 33 dB (Normal) / 23 dB (Quiet)
• Dimensions (W x H x D): 349 x 105 x 309 mm
• Weight: Approx. 4.2 kg
• Operating temperature: 0–45 °C
• Body colour: White
