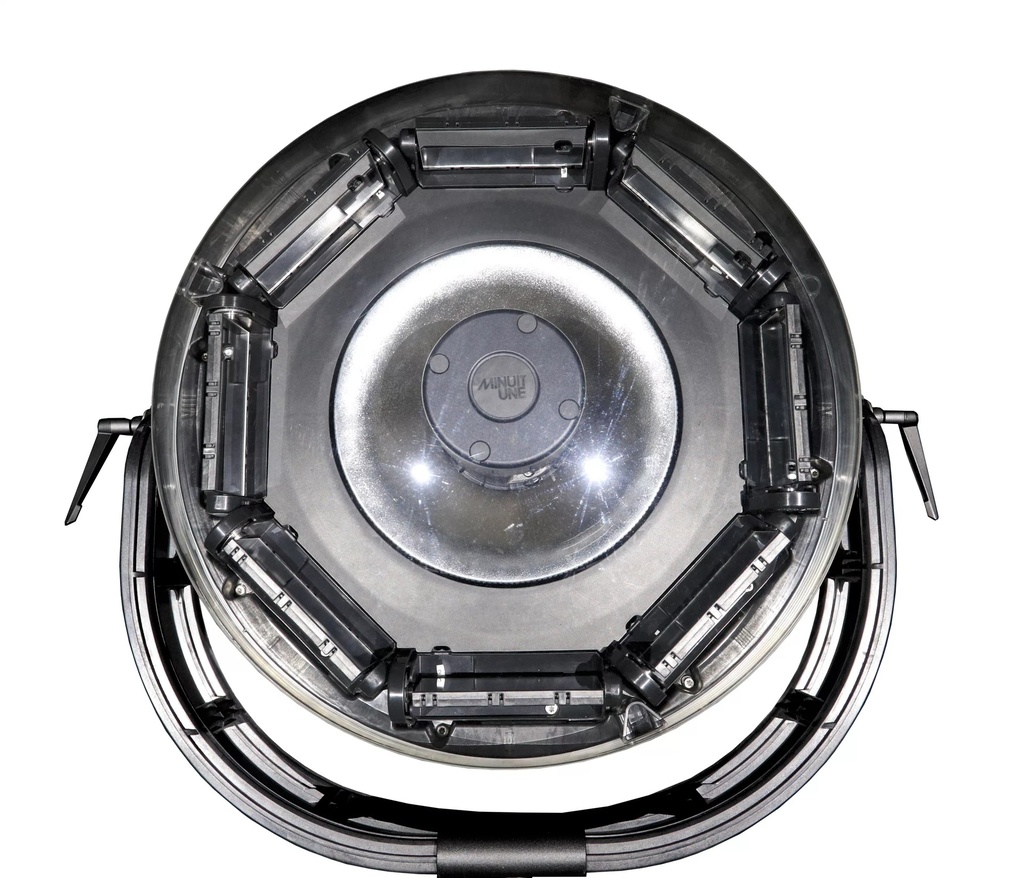

The IVL Photon by Minuit Une is a laser-based luminaire that creates immersive beam shapes in small and mid-sized venues from a few units only. Eight motorized tilts and a moving core give three outputs: immersive, decorative and creative punch.
Key Features
8 independent tilts, each with a mirror side and a frost side
Moving core: a central circular frosted reflector that moves in and out like a zoom
9 electronic gobos: 1 to 256 beams, with control of beam size, indexing and rotation
Independent dimmer and RGB control for each of the 8 tilts, plus electronic shutter
Class 3R laser product (EN/IEC 60825-1), smooth RGB spectrum
Modular construction, modules replaced independently and quickly
Winner of the 2022 PLASA Award for Innovation; made in France
Technical Specifications
Circular housing: 481 x 481 x 327 mm; with the adjustable lyre: 649 x 556 x 327 mm
Weight: 16 kg
Light source: Class 3R laser, 448 nm / 518 nm / 638 nm, scan rate 330 Hz
Mirror output: 8 independent mirrors, 42° linear aperture per tilt, operating angle 180°
Frost output: 8 independent frost filters, 4,000 lux
Moving core output: 20,000 lux; 6 cm of vertical movement, 16-bit resolution
DMX: 60 channels; standard or fast mode
Power: 100 to 240 V, 50/60 Hz, 200 W maximum
Connections: Neutrik powerCON TRUE1 in/out, 5-pin XLR DMX in/out
Protection rating: IP20; LCD colour menu display; update by micro-SD card
Ambient temperature: 0 °C to 40 °C
