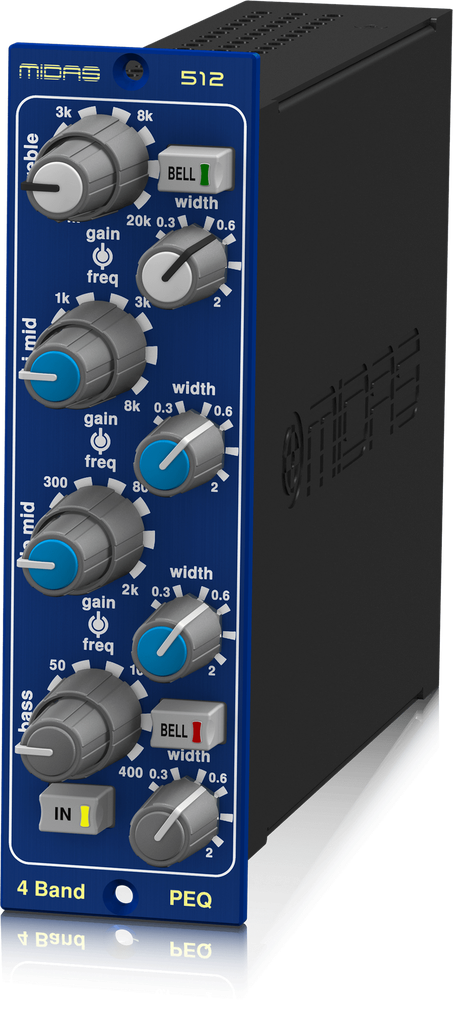

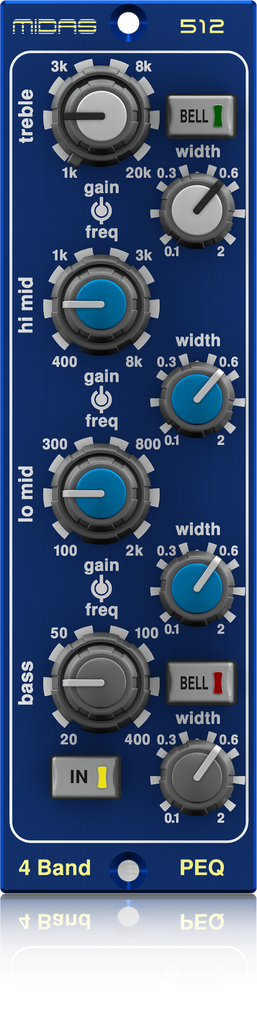

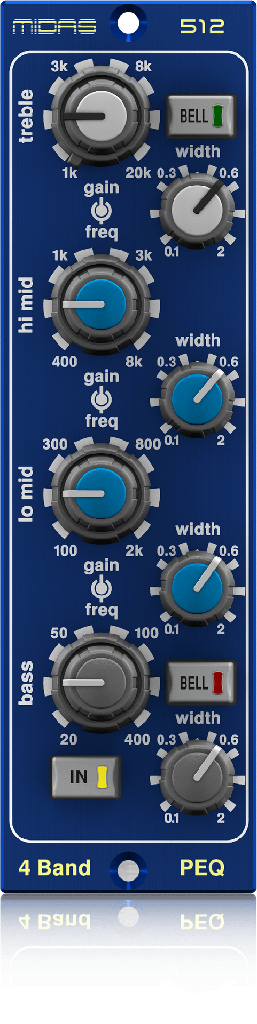

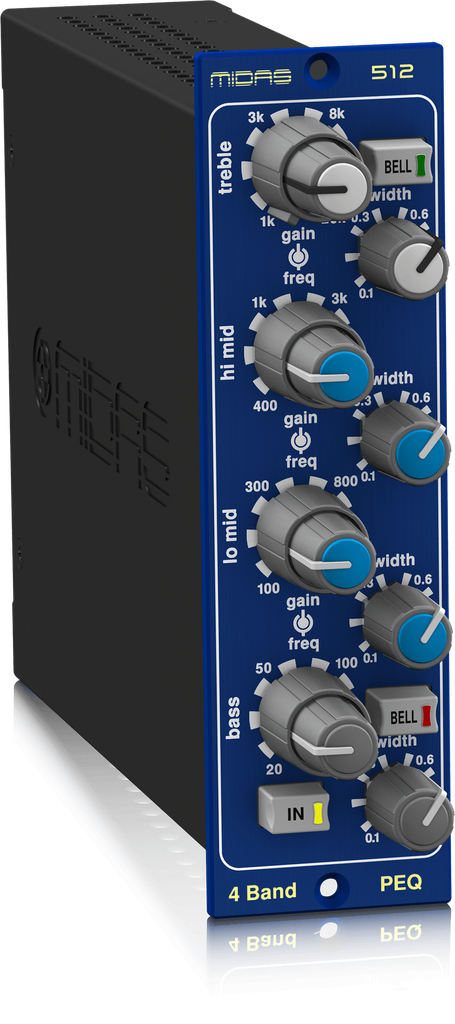

The Midas PARAMETRIC EQUALISER 512 is a compact 500 Series 4 band fully parametric equaliser based on the channel strip of the Midas HERITAGE 3000 mixing console, for use in the LEGEND L10, L6 or other standard 500 Series chassis. Its four overlapping bands use dual concentric controls for gain (-15 dB to +15 dB) and frequency. The bass and treble bands work as shelving filters by default and switch to bell response for fully parametric operation on all four bands.
- Bass 20 Hz to 400 Hz, Lo Mid 100 Hz to 2 kHz, Hi Mid 400 Hz to 8 kHz, Treble 1 kHz to 20 kHz
- Width (bandwidth) controls on all four bands in bell mode
- Electronically balanced input stage and discrete transistor driven transformer balanced output
- True hardware bypass switch
- Power up mute relays
