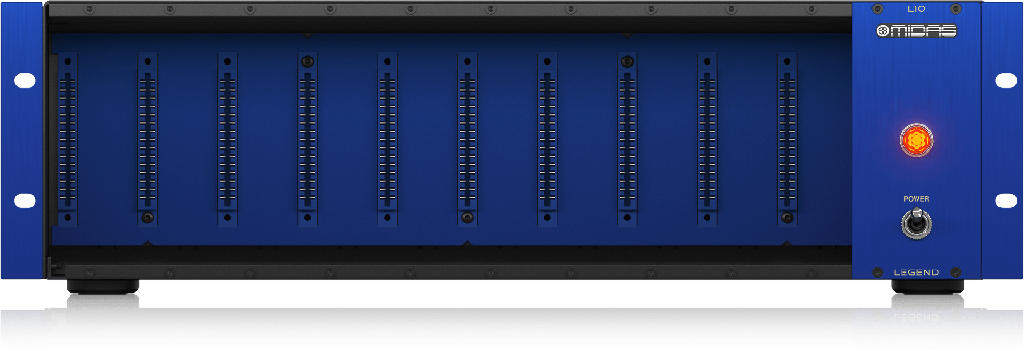

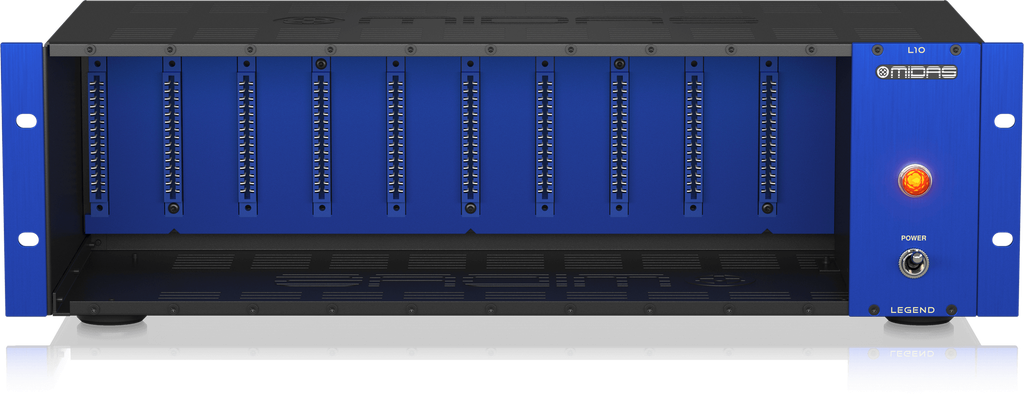

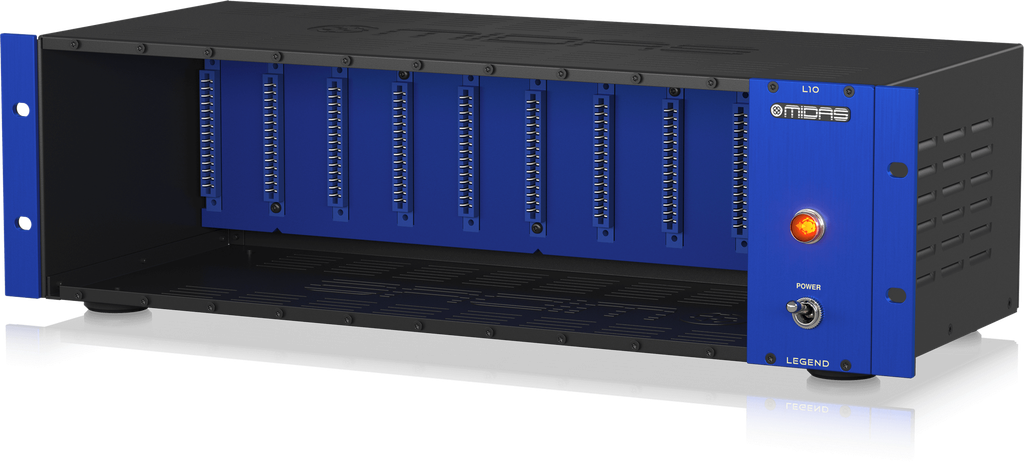

The Midas LEGEND L10 is a 500 Series rackmount chassis with space for up to 10 single-width modules in three 19 inch rack spaces. It provides I/O connectivity and +48 V phantom power for the modules, and its audio output link switches pass the signal from one module to the next without external cabling. Comp Bus Link switches allow compatible compressor modules to be linked for stereo or multi-channel sidechain operation.
- Accepts 500 series-compatible modules

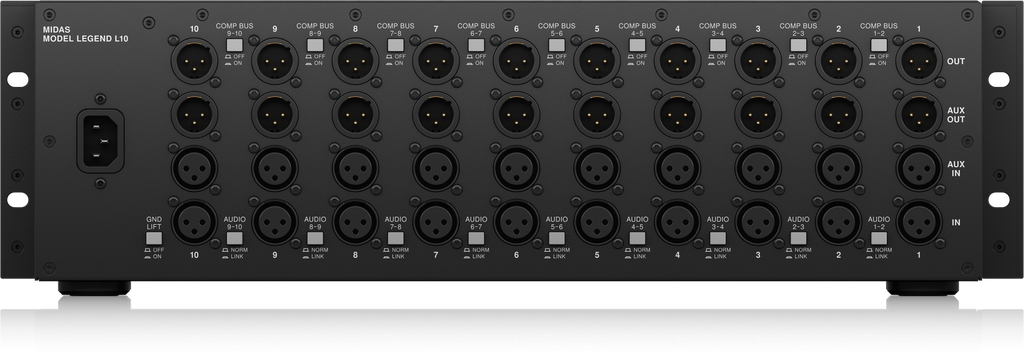

- Main and auxiliary inputs and outputs per channel on XLR connectors
- Power supply output of 3.2 A at ±16 V and 300 mA at +48 V
- Auto-ranging universal switch-mode power supply for use worldwide
- Earth lift switch
- Rugged 3U all steel rackmount chassis
