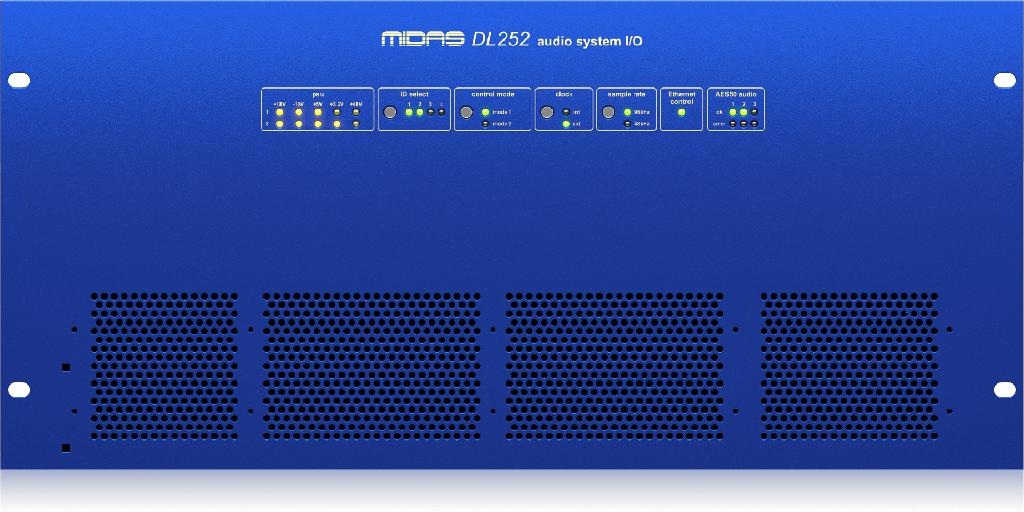

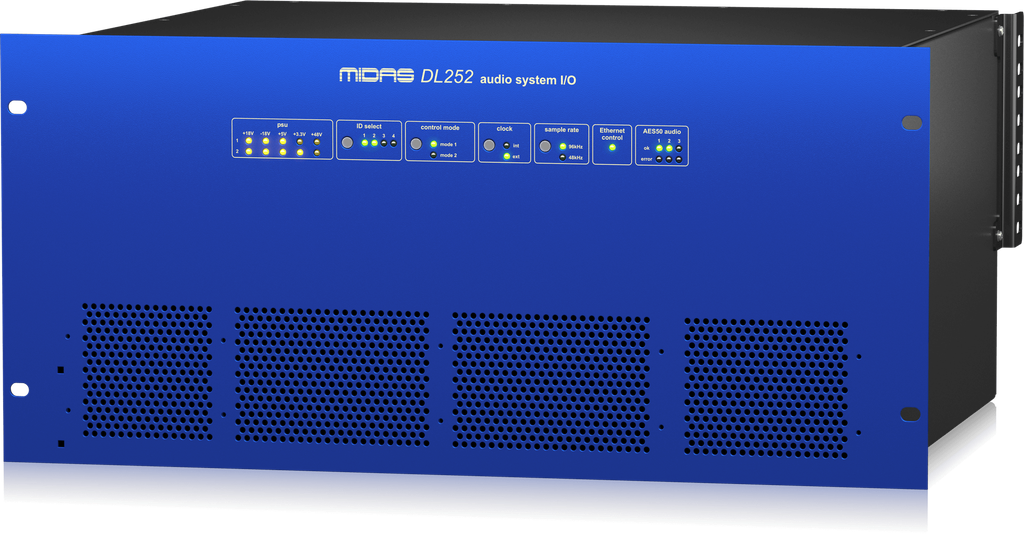

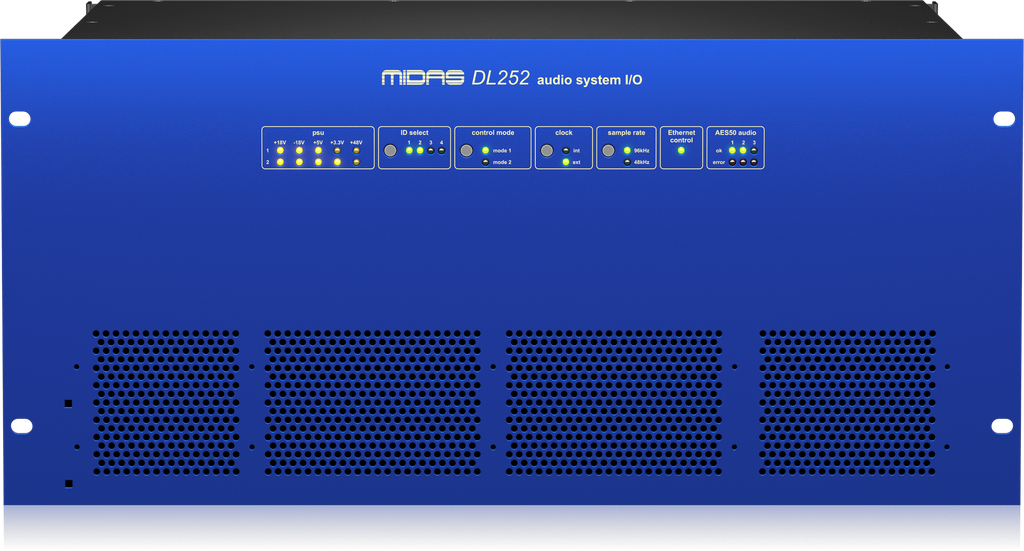

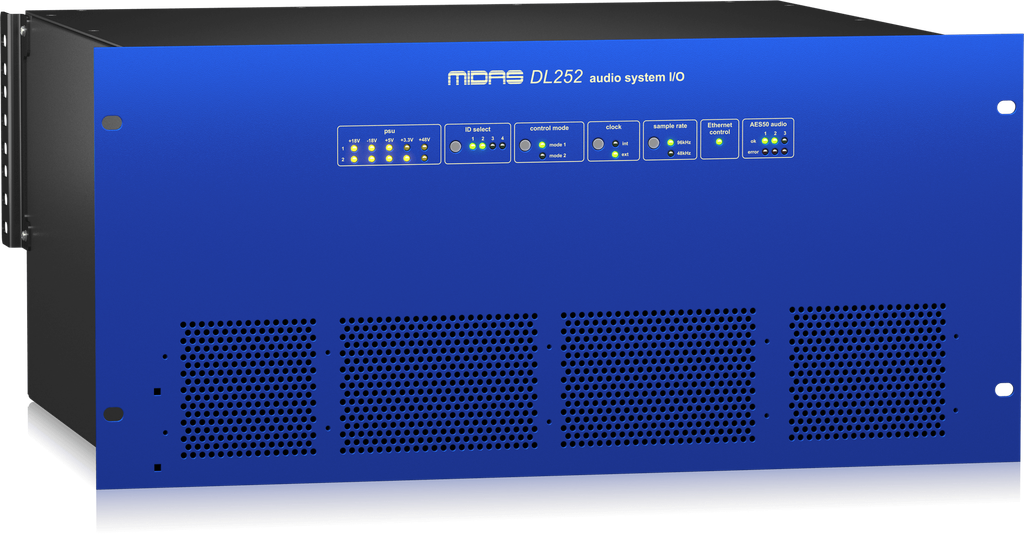

The Midas DL252 is a 5U 19 inch fixed-configuration rack I/O unit with 16 mic/line inputs and 48 line level outputs. It uses Midas microphone preamplifiers with 2.5 dB analogue gain steps and has three AES50 network ports providing N+1 redundancy, forming a digital snake between Front of House and stage for Midas M32 Series and PRO Series consoles. Settings can be made from the console or from the front panel.
- 16 Midas microphone preamplifiers with switchable +48 V phantom power

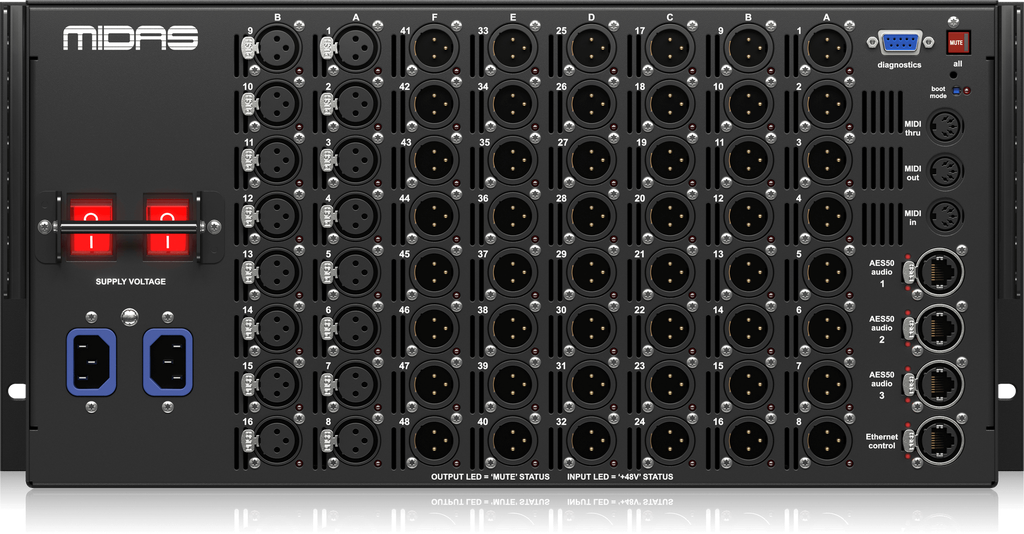

- 48 actively balanced low impedance line level outputs with rear panel "Mute All Outputs" switch
- Selectable 96 kHz or 48 kHz sample rate operation
- Remote operation up to 100 m via CAT5/5e cable
- MIDI In, Out and Thru connectors and Ethernet control port
- Dual redundant auto-ranging universal switch-mode power supplies
