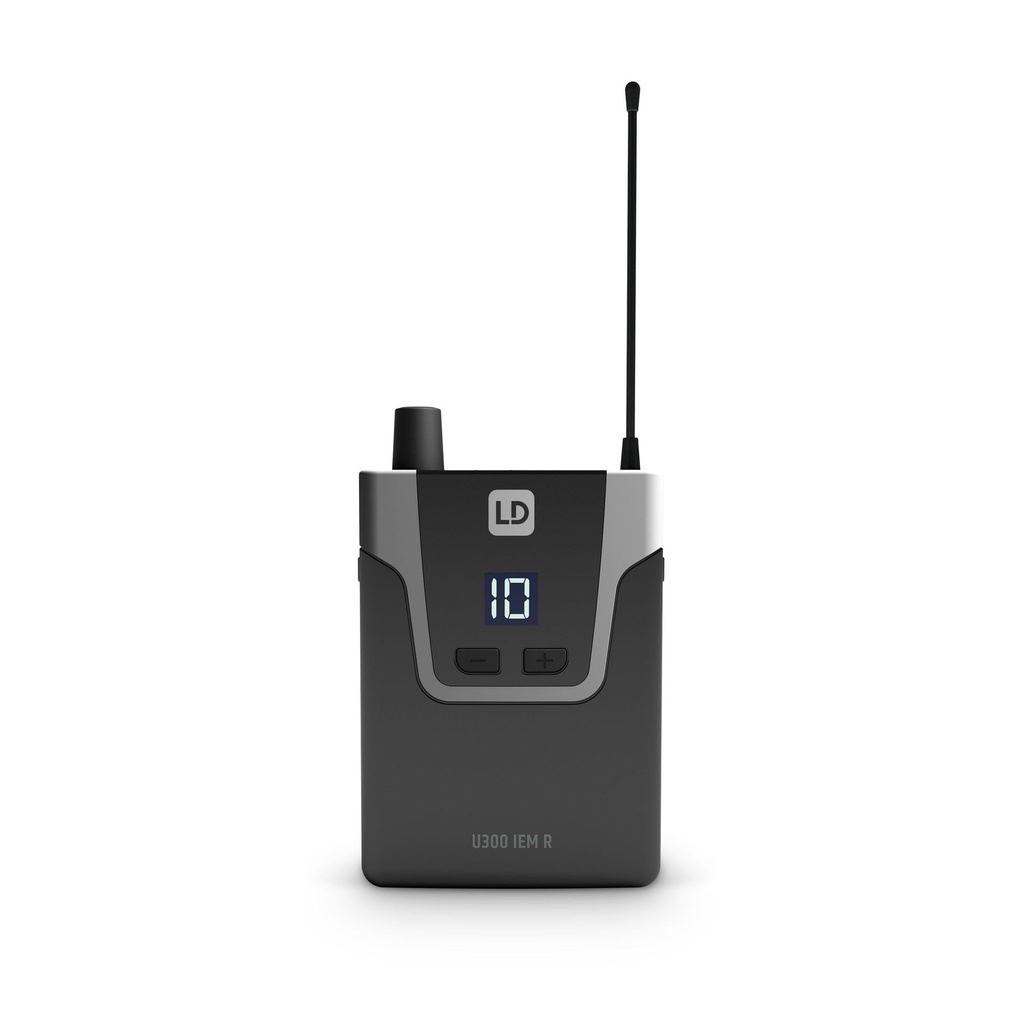

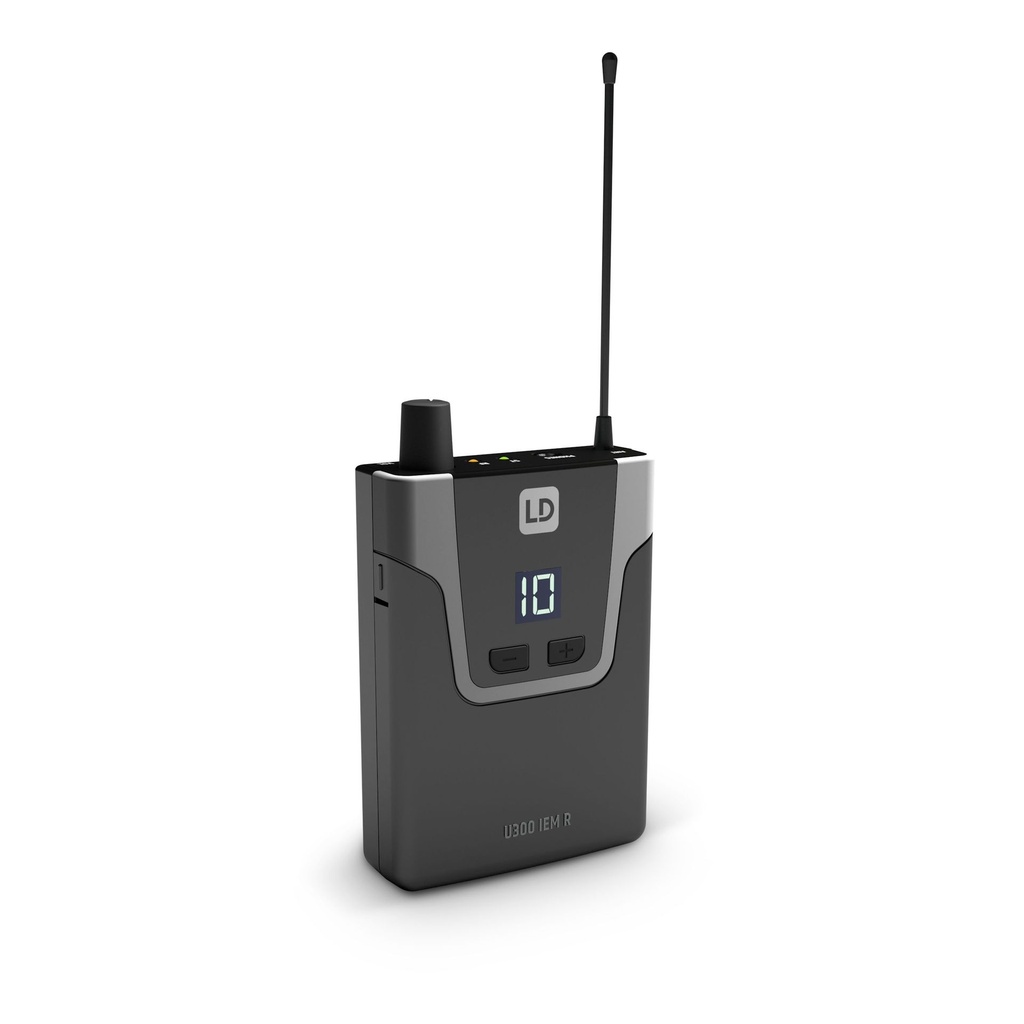

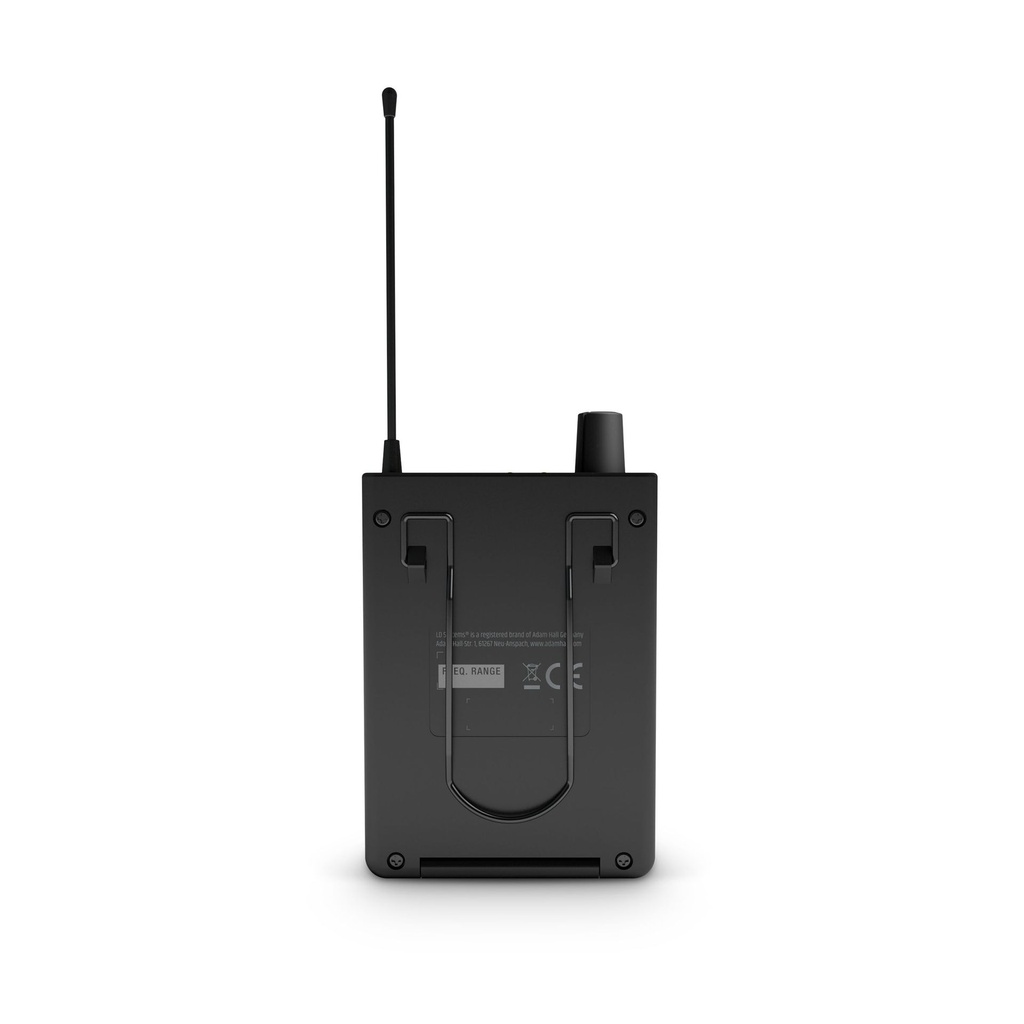

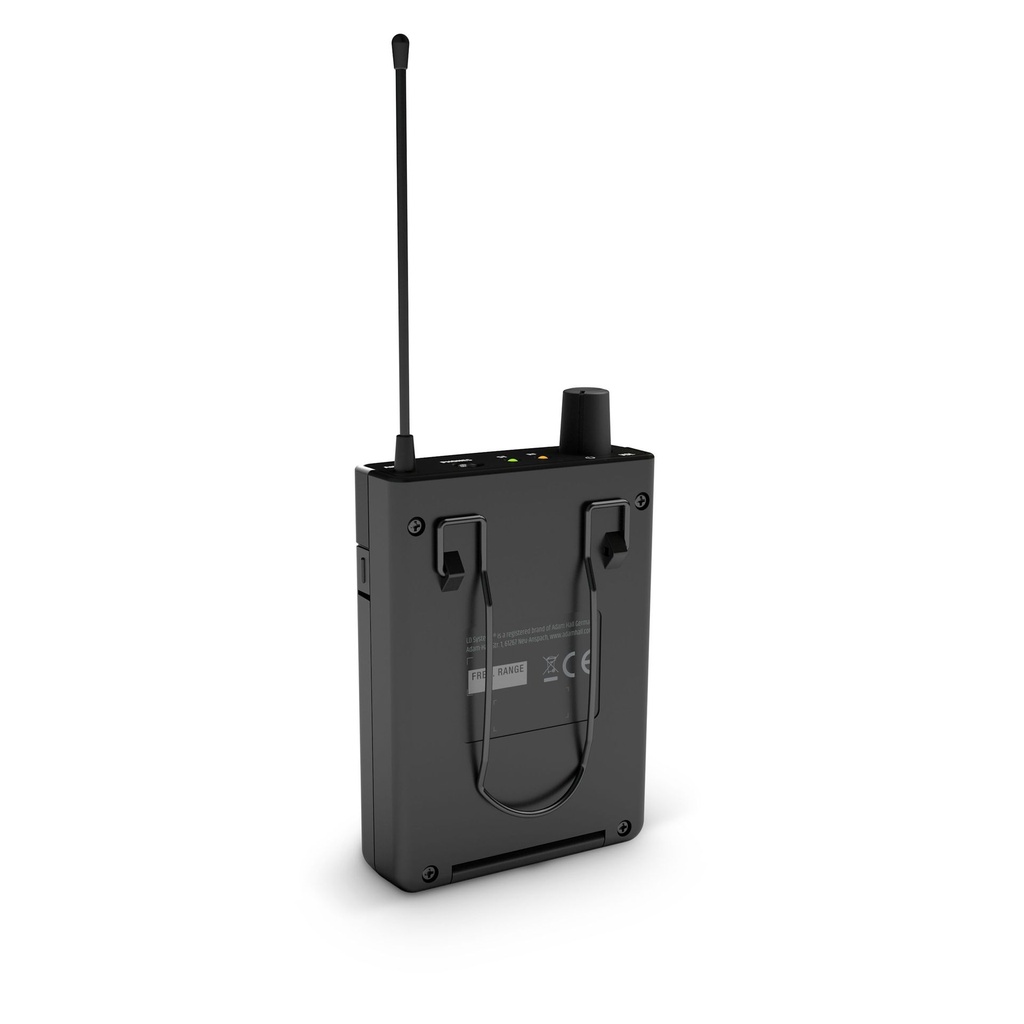

The new LD Systems U 300 IEM In-Ear Monitoring-System with 12 UHF channels offers outstanding sound quality and a large dynamic range in the 584 MHz - 608 MHz, 655 MHz - 679 MHz , 823 MHz - 832 MHz + 863 – 865 MHz, 470 MHz - 490 MHz or 514 MHz - 542 MHz.
The system toggles between mono and stereo mode for perfect monitoring for live musicians, actors or speakers. A built-in limiter ensures even, distortion-free sound reproduction with a frequency response of 50 Hz - 16 kHz and stands out because of its high signal-to-noise ratio and low total harmonic distortion. The U 300 IEM permits simultaneous operation of up to 6 systems.
Both transmitter and receiver feature multifunctional displays that show all important system information. With high quality batteries, it is possible to attain running times of 10 hours and more.
General
| Material | ABS |
|---|---|
| Wireless frequencies | 655 - 679 MHz |
| Frequency response (-6 dB, rel. Avg) | 50 Hz |
| Colour | Black |
| Accent colour | Silver |
Radio transmission
| Channels | 12 |
|---|---|
| Antennas | 1 (fixed) |
Outputs
| Output signal type | Headphone |
|---|---|
| Headphone out connector type | 3.5 mm Jack TRS female |
| Min. headphone impedance | 16 Ω |
| Max. headphone out power | 100 mW |
Battery operation
| Batteries | 2 x 1.5 V AA/LR6 @ max.10 h |
|---|---|
| Built in battery tester | 0 |
Dimensions & weight
| Width | 64 mm |
|---|---|
| Height | 103 mm |
| Depth | 24 mm |
| Weight | 85 g |
