Good sound belongs everywhere - in the hotel lobby, in conference rooms, in schools and houses of worship. Demands are constantly increasing, not only in terms of quality, but also in terms of flexibility. Permanently installed and still flexible? This apparent contradiction can be resolved by the IPA Series DSP-based installation amplifiers.

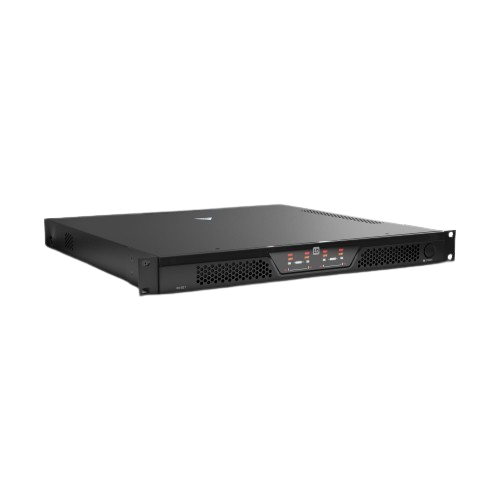

The IPA 412 T is a professional, four-channel installation power amplifier with 4 x 120 watts. While the 70V/100V outputs are equipped with high quality toroidal core transformers, the low impedance 4-Ohm outputs are completely transformerless and guarantee the highest possible audio quality. The versatile DSP functions include, amongst others, a parametric EQ with matching speaker library, dynamic tools, a matrix mixer, priority source selection and delay.
Despite this range of functions, the IPA Series power amps are easy to operate. Important functions such as signal, limit, protection and bridge mode are easily visible via the LEDs on the front panel.
HPF/LPF presets can be enabled directly on the device via DIP switches The IPA 412 T is already equipped for remote control using future remote panels and paging microphones from LD Systems. The back-panel slot provides expansion card connectivity for additional future-proofing. The Ethernet card offers comprehensive configuration and management via software. The Ethernet+Dante card also offers Dante audio networking capabilities and connection to a wide range of Dante-enabled devices, in order to integrate the IPA 412 T into the Dante network and resolve more complex tasks.
Times are changing; rooms are redivided or rededicated, numbers of attendees increase or decrease based on unforeseen events, but with the IPA Series DSP-supported power amps, your installation is prepared for any situation. Scalability and future-proofing are the biggest advantages of the IPA Series. Its energy efficiency is also ideal thanks to the class-D technology and switchable auto standby.
The IPA 424 T variant with 4 x 240 watts is available for larger installations.
- Professional 4-channel installation amplifier
- Powerful class-D power amplifier with 4 x 120 W (IPA 412 T) or 4 x 240 W (IPA 424 T) at 4 Ohm (transformer bypass) or 70V/100V outputs through toroidal core transformer
- Stereo/parallel/bridge mode selector switch per channel pair
- 4 balanced line inputs and 4 speaker outputs with terminal block connections
- User-friendly front panel with signal, limit, protection, mute and bridge mode LEDs per channel and clipping LEDs for the inputs
- Speaker protection circuits: DSP limiter, overcurrent, direct current, overheating, short circuit as well as switchable auto standby mode
- DSP presets with HPF and LPF which can be activated via DIP switches
- REMOTE audio and control bus based on CAN architecture (Controller Area Network)
- Equipped for future LD Systems remote control panels and paging microphones
- Slot for future optional expansion cards for Ethernet or Ethernet + Dante
- Optional accessories: 19" L-bearing rails, length 450 mm
General
| Product type | Amplifier |
|---|---|
| Type | Installation power amplifier |
General data
| Audio Channels | 4 |
|---|---|
| Output Circuitry | Class D |
| Operating voltage | Wide Range SMPS with PFC (power factor control) |
| Mains connector | IEC socket |
| Auto-Standby Power | Yes. Switchable (On-Off) |
| Time to Auto-standby | 20 Min with no audio input signal |
| DSP | Yes |
| Remote-Bus | Yes |
| Indicators | Front Panel: "PROT", "LIMIT", "SIG", "BRIDGE" and Mute Symbol LED´s. Power On/ Standby LED, Rear Panel: 4x Input Clip LED´s, Remote Lock LED (Red) |
| Front panel controls | standby, On / off switch |
| Rear panel controls | Amplifier Channel Mode, Remote Lock, Remote ON/OFF, Low-Z and High-Z switches (paired), Remote-Mode, "ST“ (Stereo), Output Volume potentiometers, Preset A and B switches, "BRG“ (Bridge), "PAR“ (Parallel), Standby On/Off |
| Inputs | Remote Bus Audio Input, 4x Balanced Line Inputs |
| Input connectors | Service connection Micro USB type B, Remote IN/OUT RJ45, 6-pin Terminal Block Pitch 3.5 mm |
| Expansion Slot | For optional Ethernet, or Ethernet + Dante cards |
| Cooling | Passive + 2-zone temperature controlled active cooling, front to rear/side airflow |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Fuse | T10AL 250 V |
| Inrush Current Power OFF-Standby | 2.8 A |
| Inrush Current Standby-ON | 0.5 A |
| Standby power consumption | 0.9 W |
| Power Consumption @ idle mode | 25 W |
| Power Consumption @ full load | 790 W |
| Operating temperature | 0 °C - 40 °C; (max 60% relative humidity) |
| Width | 483 mm |
| Height | 44.5 mm |
| Depth | 425 mm |
| Optional accessories | 19" L mounting rails ( AH - 876TL ) |
Amplifier Output Specifications, all outputs driven and loaded
| Rated ouput power (1kHz @ 4 Ohms) | 4 x 120 W (1,5 Seconds Sine Burst) |
|---|---|
| Rated ouput power (1kHz @ 8 Ohms) | 4 x 60 W (1.5 Seconds Sine Burst) |
| Rated ouput power (1kHz @ 16 Ohms) | 4 x 30 W (1,5 Seconds Sine Burst) |
| Rated ouput power (1kHz @ 8 Ohms, bridged) | 2 x 235W (1,5 Seconds Sine Burst) |
| 4 x 240W, Transformer Coupled Output | 4 x 120W, Transformer Coupled Output |
| Protection circuits | Short circuit, DC, HF Protect, temperature, Audio Limiter, HPF (High-Z), thermal overload |
| Minimum load impedance per channel | 4 ohms Single-Ended, 8 ohms Bridge |
Performance specifications
| Nominal input sensitivity | +5 dBu (Sine 1 kHz, Gain max) |
|---|---|
| Nominal input clipping | 19 dBu (Sine 1kHz) |
| THD + N | < 0,03 % (Low-Z SPK OUT, +18 dBu, 20 Hz – 20 kHz) |
| Frequency response | 18 Hz – 22 kHz (Low-Z OUT, -3 dB), 50 Hz – 23 kHz (High-Z OUT, -3 dB) |
| Signal-to-noise ratio | CH Gain Center (0 dB), 20 kHz BW, a-weighted), >105 dB (Low-Z SPK OUT |
| Crosstalk | 83 dB @ 1 kHz |
Digital Specifications
| System Latency: | 6.2 ms |
|---|---|
| AD/DA converter resolution | 24 bit |
| AD/DA converter sampling rate | 48 kHz |
