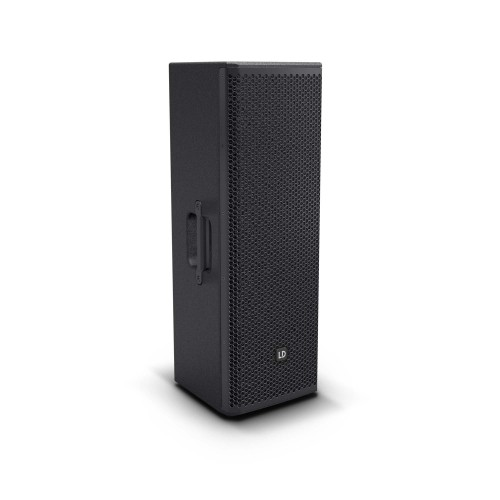

This highly professional 2-way active system is designed for absolute, long-term reliability. With its rugged bass reflex housing and finely tuned, user-friendly presets, it is suitable for use as a full-range speaker, satellite or monitor. The STINGER® 28 A G3 is powered by a highly efficient Class-D amplifier with a powerful 500-watt continuous output. Its two specially developed 8" woofers and a BMS tweeter driver achieve a powerful bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion. Situated directly in front of the two 8” woofers, phase plugs ensure that midrange efficiency is increased and harmonic distortion above the crossover frequency is reduced.
LD Systems’ proprietary DynX® DSP technology means that the STINGER® 28 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The STINGER® 28 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.
- Active 2 x 8" 2-way bass-reflex PA speaker
- 131 dB max. SPL and 500-watt RMS performance with a highly-efficient digital amplifier
- Perfect all-rounder for full-range, satellite and monitor applications
- Practical presets for fast and user-specific frequency tuning
- Homogeneous dispersion pattern thanks to a BEM-optimised tweeter wave guide
- Two 8" custom woofers and BMS tweeter driver
- Distortion-free sound at even maximum volumes, thanks to DynX® DSP technology
- 2 line/mic input channels with individual gain controllers plus mono mix output
- Birch plywood housing with ultra-robust polyurea coating and M10 rigging points
- Shock-resistant front grille for optimum speaker protection
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle
- Extensive and smart accessories for installation and transport
General
| Type (active/passive) | Active |
|---|
| Peak output power | 1000 W |
|---|
| RMS output power | 500 W |
|---|
| Amp class | Class D |
|---|
| SysLink® | 0 |
|---|
| Max. SPL peak | 131 dB |
|---|
| Frequency response | 58 Hz |
|---|
| Speaker system | 2-way system |
|---|
| Dispersion | Hor.: 90° / Vert.: 50° |
|---|
| Number of inputs | 2 |
|---|
| Input connector types | Standard speaker connector 4-pole male & speakON® |
|---|
| Number of outputs | 1 |
|---|
| Output connector types | XLR 3-pole male |
|---|
| Protection features | Multiband Limiter, Overheating, Overload, Overvoltage |
|---|
| Colour | Black |
|---|
Inputs
| Number of line inputs | 2 |
|---|
| Line-In connector type | Standard speaker connector 4-pole male & speakON® |
|---|
Outputs
| Number of line outputs | 1 |
|---|
| Line outputs connector type | XLR 3-pole male |
|---|
Signal processing
| Mixer | 1 |
|---|
| Audio processing | 3 band EQ (High, Mid, Low), Presets |
|---|
Bass driver
| Size | 8 " |
|---|
| Outer diameter | 2032 mm |
|---|
| Quantity | 2 |
|---|
| Manufacturer | Custom Made |
|---|
| Magnet | Ferrite |
|---|
| Voice coil | 2 " |
|---|
Tweeter
| Driver size | 1 " |
|---|
| Manufacturer | BMS |
|---|
| Magnet | Ferrite |
|---|
| Voice coil | 1 " |
|---|
Mains operation
| Operation voltage | 100 V AC - 240 V AC / 50 - 60 Hz |
|---|
| Power supply type | Switched-mode power supply (SMPS) |
|---|
| Mains connector | Mains socket indoor power in male & powerCON® |
|---|
Housing
| Design | Bass reflex |
|---|
| Mounting type | M10 for SuperClamp |
|---|
| Flange | 36 mm (0°/5°) |
|---|
| Cabinet material | Birch plywood |
|---|
| Material thickness | 12 mm |
|---|
| Front grille material | Aluminium |
|---|
Environmental
| Ambient temperature | 0 °C |
|---|
| Maximum air humidity (non-condensing) | 80 % |
|---|
Dimensions & weight
| Width | 270 mm |
|---|
| Height | 756 mm |
|---|
| Depth | 290 mm |
|---|
| Weight | 20.5 kg |
|---|
Other properties
| Included accessories | Mains cable |
|---|
