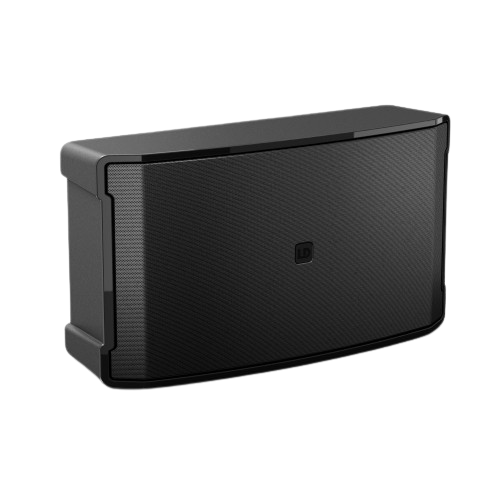

Part of the DQOR® series, the DQOR® SUB 8 A is a powered indoor installation subwoofer with an 8" woofer and a 10" passive radiator. It features two 110 W RMS powered outputs, specifically designed for connecting external full-range loudspeakers. These outputs are fine-tuned by DSP presets to ensure an optimal audio pairing with DQOR® series loudspeakers or any other loudspeaker.
Designed for high performance in a compact form factor, it enables a powerful 2.1 audio system with no need for separate amplifier racks.
The clean and low-profile design ensures the DQOR® SUB 8 A is a sleek addition to any room, combining aesthetics with powerful audio performance. Rated at 250 W RMS, it delivers impressive sound quality at up to 108 dB SPL with low frequency extension down to 37 Hz.
The DQOR® SUB 8 A has rubber feet for floor mounting, or it can be easily installed with the optional surface mount bracket, which includes flexible mounting options, holes for clean cable management, locking screws, a safety-locking mechanism, and a hinge mechanism for quick setup.
Four terminal block connectors allow for balanced stereo input, VCA volume control and remote standby control. Dip switches allow for stereo/mono mode, auto standby mode and DSP preset selection.
The indoor installation subwoofer can be used in a wide variety of applications including hospitality, retail, entertainment or corporate settings.
It is available in two colours: black (RAL9005) and white (RAL9016).
- 8" Powered Subwoofer with 10" passive radiator
- Clean, low-profile design with robust aluminium enclosure
- 220 W subwoofer power
- 2 × 110 W amplifier to drive passive loudspeakers for a 2.1 system
- DSP presets for DQOR® loudspeakers or HPF for any loudspeaker
- Optional Surface Mount bracket (wall + ceiling) with hinges for easy installation
General
| Directivity | Omnidirectional |
|---|
| RMS output power | 250 W |
|---|
| Amp class | Class D |
|---|
| SysLink® | 0 |
|---|
| SPL (1 W/1 m) | 86 dB |
|---|
| Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %) | 110 dB |
|---|
| Max. SPL peak (pink noise, halfspace/1 m, CF 4) | 119 dB |
|---|
| Low frequency limit (-3 dB, rel. Avg.) | 43 Hz |
|---|
| Low frequency limit (-10 dB, rel. Avg.) | 37 Hz |
|---|
| Crossover frequency | 200 Hz |
|---|
| Protection features | Undervoltage, Overvoltage, Overheating, Short circuit, Direct current, Soft-Start |
|---|
| Colour | Black |
|---|
| RAL code | RAL 9005 |
|---|
Inputs
| Number of line inputs | 2 |
|---|
| Line-In connector type | Terminal block 3 pin (Euroblock) / 3.81 mm pitch |
|---|
Line input performance
| Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain) | 0 dBu |
|---|
| Nom. input clipping, balanced (< 1% THD, 1 kHz, unity) | 19 dBu |
|---|
| Input impedance (balanced) | 16 kΩ |
|---|
| Min. CMRR (0 dB below clip, 1 kHz, unity) | 50 dB |
|---|
Outputs
| Output signal type | Loudspeaker |
|---|
| Number of speaker outputs | 2 |
|---|
| Speaker output connection type | Terminal block 4 pin (Euroblock) / 5.08 mm pitch |
|---|
| Min. speaker impedance | 4 Ω |
|---|
Signal processing
| Mixer | 0 |
|---|
| AD/DA converter bit depth | 24 Bit |
|---|
| AD/DA converter sampling rate | 48 kHz |
|---|
| Min. Signal-to-noise ratio (SNR) | 96 dB |
|---|
| System latency | 2 ms |
|---|
Amplifier
| Number of satellite outputs | 2 |
|---|
| Satellite output power per channel (RMS) | 85 W |
|---|
| Sub output power per channel (RMS) | 165 W |
|---|
| Satellite output power per channel (Peak) | 110 W |
|---|
| Sub output power per channel (Peak) | 220 W |
|---|
| Max. THD+N (SAT out, 0 dBu, Volume Center, 1 kHz, 20 kHz BW) | 0.01 % |
|---|
| Max. THD+N (SUB out, 0 dBu, Volume Center, 63 Hz, 20 kHz BW) | 0.02 % |
|---|
External control
| GPI controllable functions | Standby |
|---|
| Resistance for volume control (VCA) | 10 kΩ |
|---|
| VCA input connection type | Terminal block 3 pin (Euroblock) / 3.81 mm pitch |
|---|
| GPI input connection socket | Terminal block 2 pin (Euroblock) / 3.81 mm pitch |
|---|
Bass driver
| Size | 8 " |
|---|
| Manufacturer | Custom Made |
|---|
| Magnet | Ferrite |
|---|
| Voice coil | 2.5 " |
|---|
| Passive radiator | 10 " |
|---|
Mains operation
| Operation voltage | 100 V AC - 240 V AC (±10 %) / 50 - 60 Hz |
|---|
| Power supply type | Switched-mode power supply (SMPS) |
|---|
| Rated power | 550 W |
|---|
| Power consumption in idle mode | 25 W |
|---|
| Max. Stand-by power consumption | 0.5 W |
|---|
| Inrush current | 2.7 A |
|---|
| Mains connector | IEC C14 plug male |
|---|
| Mains fuse | T6.3AL/250 V |
|---|
Standby
| Auto standby after | 20 min |
|---|
| Standby wake up time | 3 s |
|---|
| Wake-up threshold | -54 dBFS |
|---|
Housing
| Design | Closed with passive radiator |
|---|
| Cabinet material | Die-cast aluminium, Plastic |
|---|
| Front grille material | Aluminium |
|---|
Cooling
| Cooling system | Convection cooling |
|---|
Environmental
| Maximum air humidity (non-condensing) | 85 % |
|---|
| Safety Class | Class 1 |
|---|
Dimensions & weight
| Width | 537.4 mm |
|---|
| Height | 304.4 mm |
|---|
| Depth | 185.6 mm |
|---|
| Weight | 15.2 kg |
|---|
