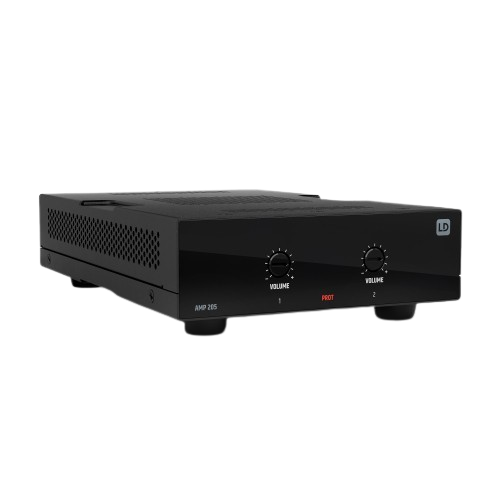

The LD Systems AMP 205 AV is the perfect complement to deliver sound from an AV system. Just connect your video source and it extracts the audio and delivers stereo audio to your loudspeakers. An HDMI pass though connection makes connection to your display device easy.
Powered by a highly efficient 2x50W Class-D amplifier, it features 4 Ohm outputs and a user-friendly front panel, equipped with signal, clip, and protection LEDs.
Its tiny form factor (142 x 44 x 222) and included mounting plates allow it to be installed discreetly almost anywhere; behind screens, under tables or even in air-handling spaces and above plenum ceilings. Alternatively, it fits into 1/3 19 inch rack. Use the optional rack tray to slot up to four TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.
The AMP 205 AV uses an external 24V power supply. Terminal block connections for the analogue outputs and GPIO connections make wiring easy.
Remote control connectivity for third-party devices lets you select between HDMI input and HDMI out (ARC). You can also adjust volume on either channel, and put the power amplifier into standby mode at any time, ideal for when the amp is hidden away. Optional auto-standby saves power when no audio is running.
The perfect solution for professional installers and users looking to deliver higher performance audio for the video systems.
- Professional mini amplifier with HDMI Audio de-embedder
- HDMI In- and Out and stereo line outputs
- 2 x 50W Class-D amplifier with low impedance outputs
- Compact form factor and passive cooling
- Remote source select, standby and volume control
- External 100-240V power supply
- Mounting plates for flexible inconspicuous installation, even above suspended ceilings
- Auto standby to save power
- Balanced line output and loudspeaker output on terminal blocks
- User-friendly front panel with signal, clip and protection LEDs.
- Optional rack tray for combining with other TICA® series products
General
| Product type | Installation power amplifier and HDMI Audio-Deembedder |
|---|---|
| Line inputs | 0 |
| Line outputs | 2 |
| Line output connectors | Pitch 3.81 mm terminal block (3-pin), Balanced line outputs |
| Loudspeaker outputs | 2 with output mode selector (Stereo / High Power Mode) |
| Cooling | Convection |
HDMI specifications
| Supported color format | RGB, YUV444, YUV422, YUV420 |
|---|---|
| Max. data rate | 48 Gbit/s |
| Resulution range | Up to 4K2K 60Hz |
| Color bit depth | 8 bits per color |
| Chroma Sampling | 4 : 4 : 4 |
| HDMI standards | HDMI 2,1, HDCP 1,4 - 2,3 |
| Number of HDMI Inputs | 1 |
| HDMI Input Connector | 1 female HDMI type A |
| Number of HDMI Outputs | 1 |
| HDMI Output Connector | 1 female HDMI type A |
| Standby wake up threshold | 7 seconds |
Line output
| THD + N | > 0.006% |
|---|---|
| SNR (A) | > 100 dB |
| Frequency range | 15 Hz - 20 kHz (-0,5 dB) |
| Output level | +15 dBu (0dBFS / 1kHz) |
3rd Party Control
| Main Volume (VCA) | Pitch 3,5 mm terminal block (3-Pin), 10 kOhm (Linear Taper) External Potentiometer |
|---|---|
| Source select | Pitch 3,5 mm terminal block (3-Pin) |
| Power Standby | Pitch 3.5mm terminal block (2-pin), External momentary button |
Amplifier Output
| Type | Class D |
|---|---|
| Output modes | High Power Mode (ST/ HPM), stereo |
| Amplifier Outputs | 2- channel (STEREO) / 1-Channel (HPM) |
| Connector | 4 - pin terminal block (pitch 5.08mm) |
| THD + N | < 0.05 % |
| SRN ( A ) | < 100 dB |
| RMS Power ( W ) | 1 x 100 W @ 2 ohm (Continuous sine wave 1 kHz 10 sec), 2 x 50 W @ 4 ohm (ST) |
| Minimum load impedance | 4 Ohm (ST), 2 Ohms (HPM) |
| Frequency response | 15 Hz - 20 kHz (-0,5 dB) |
| Protection circuits | over-current, Short circuit, DC protection, thermal overload |
Power supply
| Type1 | External SMPS |
|---|---|
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Fuse | 0 |
| Power Supply Secondary | 24 V DC |
| Secondary Current | 3,5 A |
| Secondary connector | Terminal block 5.08 mm 2-pole |
| Primary Connector | IEC |
| Safety class | Class 3 |
| Max. power consumption | 155 W ( 0 dBFS, sine 1 kHz with 2 x 4 Ohm load ) |
| Idle power consumption | 6.8 W |
| Standby power consuption | < 1.5 W |
| Mains Inrush Current | 2.4 A @ 230 V AC |
| Operating temperature ( non-condensing ) | 0°C - 40°C; < 85% humidity, non condensing |
General data
| Material | Plastic Front panel, Steel chassis |
|---|---|
| Dimensions (W x H x D) ( height with rubber feet ) | 142 mm x 53 mm x 222 mm |
| Accessories (included) | Terminal blocks for electrical connections., External SMPS, Mounting plates for surface mount applications |
