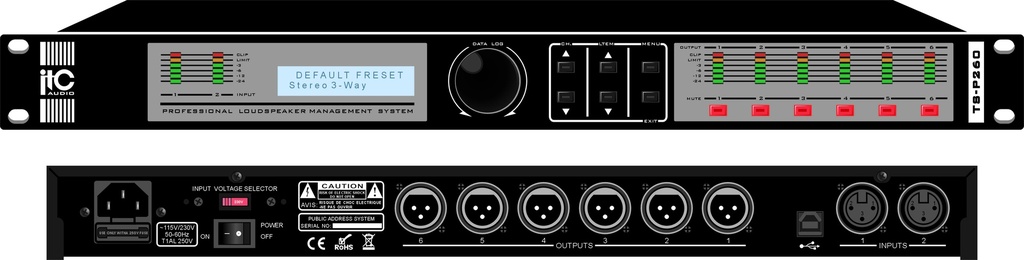

Professional Loudspeaker Management System
Key features
- 64 bytes digital signal processor.
- 110dB dynamic input.
- 114dB dynamic output.
- Balanced input and unbalanced output.
- Input gain +12dB.
- Each channel output with 10 bands graphic equalizer.
- The graphic equalizer with bell, high shelf, low shelf, notch and all pass features.
- Each output with adjustable 0-5ms delay.
- High and low pass filter with butterworth, Bessel and linkwitz-Riley features, Unaspected filter up to 24dB per OCT.
- Built-in adjustable current limiter.
- 180°switchable phase.
- Input level of +6dB.
- Output level of +6dB.
- Average delay is less than 1ms.
- PC remote controlled, monitored and software parameter set up.
- Capacity of 50 pre-set programs.
Specifications
| Model | TS-P260 |
| Output Channels | 6 |
| Digital Processing | 64 bits |
| Input Gain | +12dB |
| Nominal Inputs Level | +6dBu 20KΩ Balanced |
| Maximum Inputs Level | +22dB 20KΩ Balanced |
| Nominal Outputs Level | +6dBu 600Ω Unbalanced |
| Maximum Outputs Level | +9dBu Unbalanced |
| Per output | 10 parametric filters |
| Presets | 50 |
| Parametric Filters | Bell, High Shelf, Low Shelf, Notch, Allpass |
| Inputs Dynamic Range | 110dB |
| Outputs Dynamic Range | 114dB |
| THD | ≤0.01% |
| Universal Line Voltage | ~110V/60Hz / ~230V/50Hz |
