4K@60 Wallplate HDMI Encoder (SDVoE) C

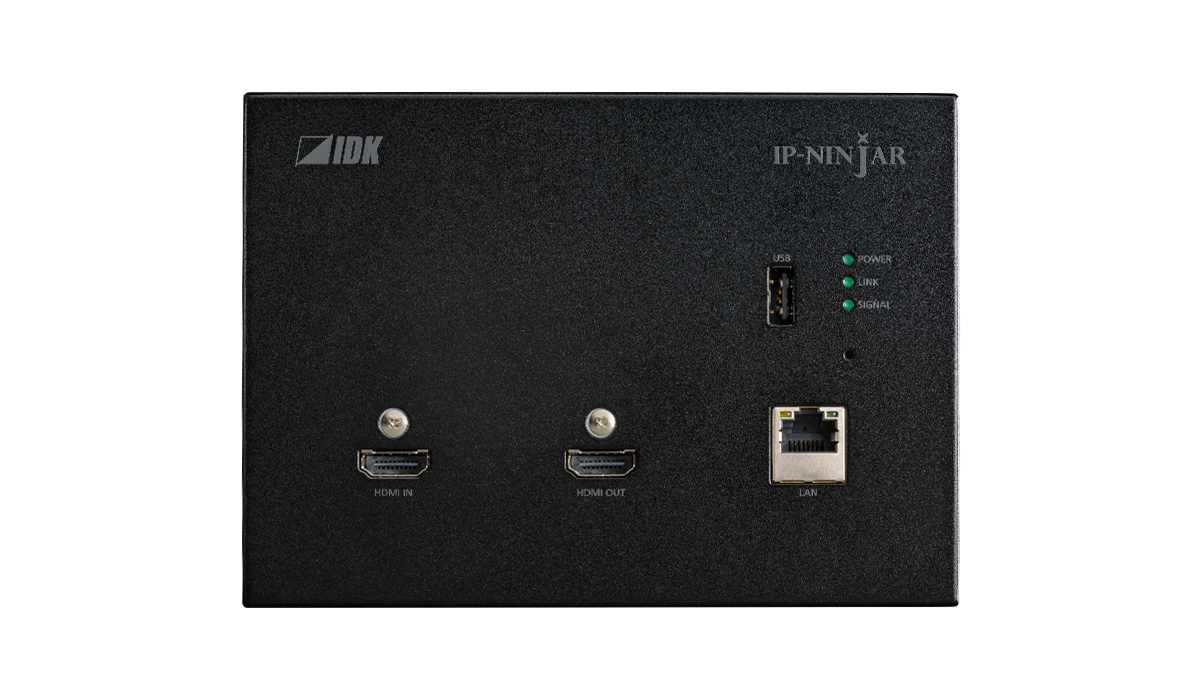

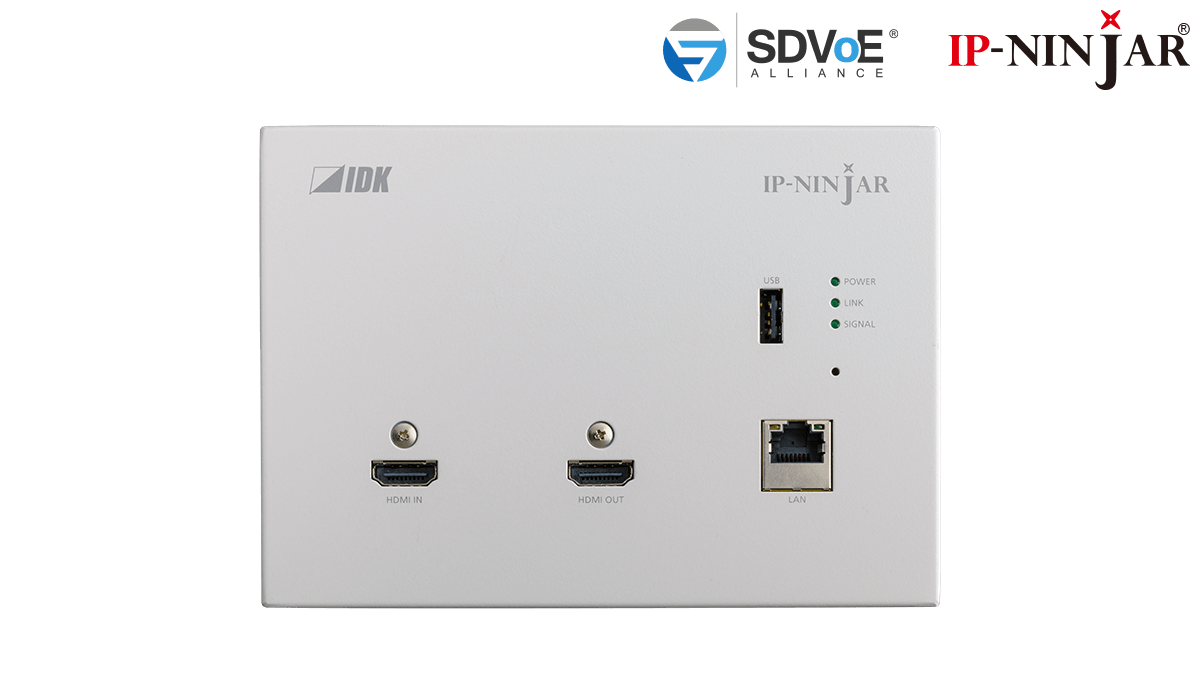

Compact wallplate encoder for 4K@60 over CAT6A Ethernet. Zero frame latency. PoE-powered. Available in white or black. Takes HDMI in, encodes to SDVoE, transmits over standard network cable up to 100m. Zero latency for live videowalls, events, or venue distribution. Mounts flush in wallplates. PoE powers it—no separate PSU needed. Best for: Corporate venues, live events, rental companies, distributed installations where HDMI won't reach.

Key Specs

• Video: 4K@60 (4:4:4), all standard resolutions, HDCP 1.4/2.2, HDR
• Network: 10 Gigabit Ethernet SDVoE (AES-128 encrypted), up to 100m on CAT6A
• Latency: Zero frame latency
• Power: PoE+ (12W) or optional DC 5V
• Control: RS-232C, LAN (1GbE), or USB HID

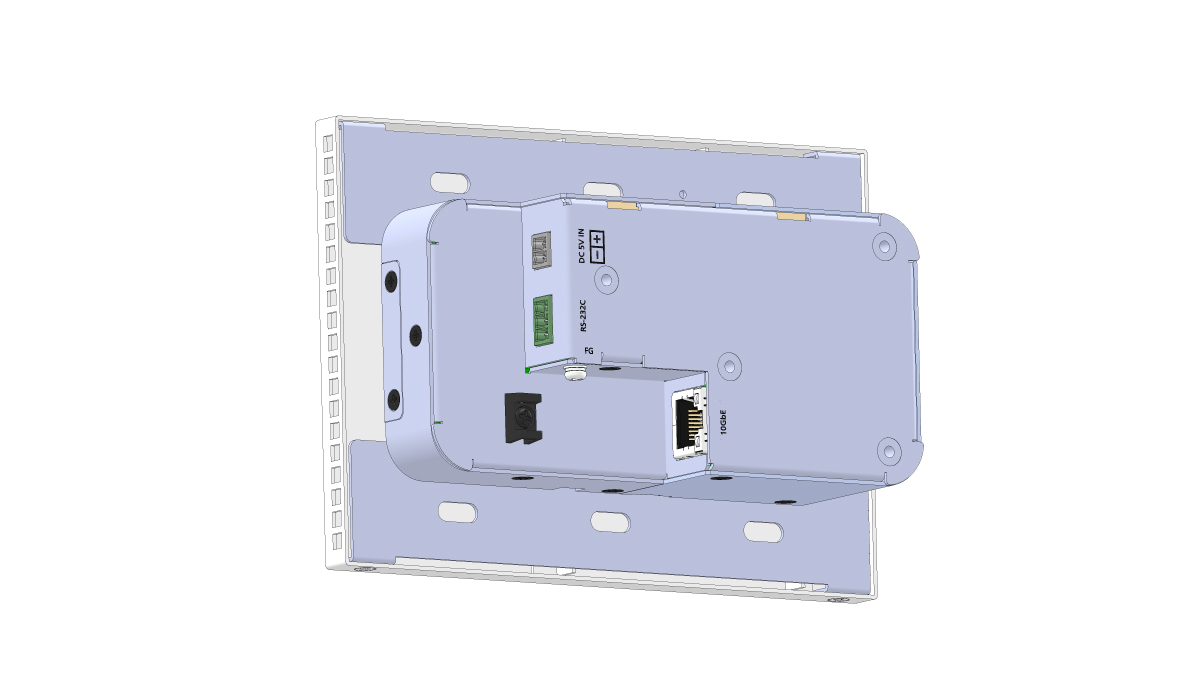

• Form Factor: Wallplate mount, 162×114×53mm, 0.8kg
